Defining Events and Flows For a Specific List of Companies

Events and flow definitions are normally valid for all companies. There is a new requirement to define events and flow definitions for a specified list of companies.

When entering the flow definition, users can select one or more companies. The list of available companies is derived from Transact through an API call.

Follow the steps below to define events and flows for a specific list of companies.

1. Select any exit point (for example, Application, Version, Delivery and so on).
2. Select the type of exit point.
3. Click the Flow tab.
4. Enter the Flow name.
5. Click Edit.

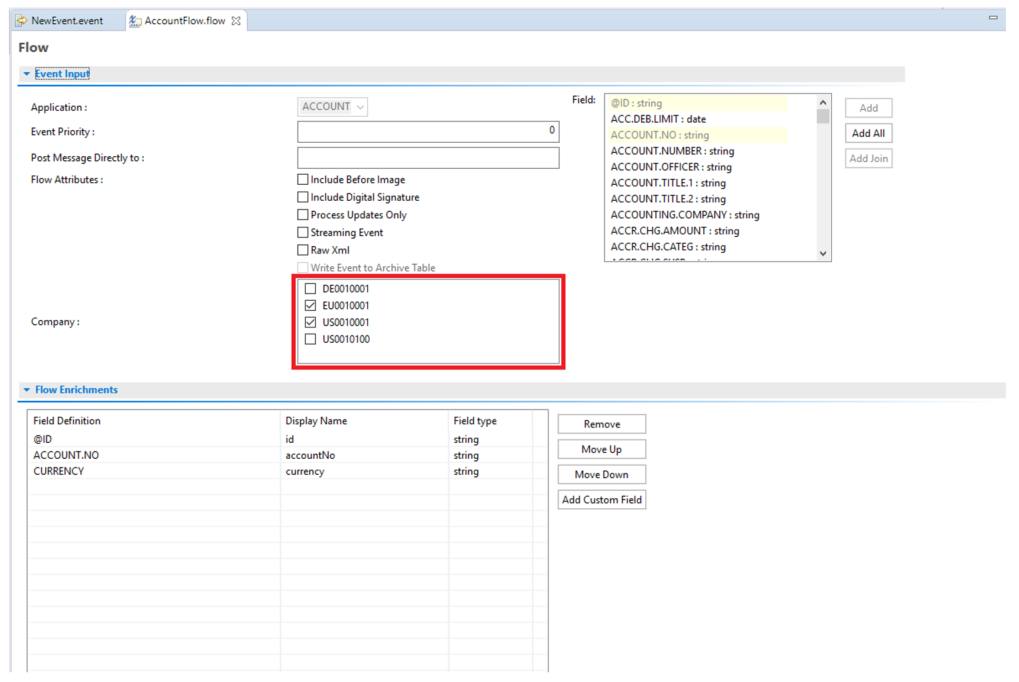

6. Select the required company or companies for which this event needs to be triggered. If you do not select anything, the event for this flow will be triggered for all companies.



7. Select the fields for the exit point.

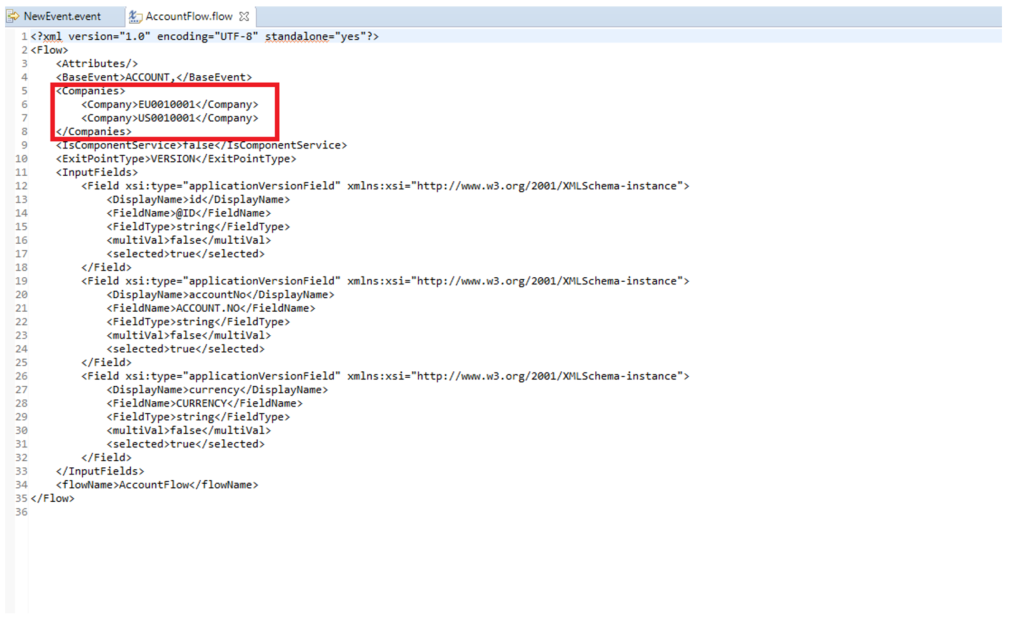

8. Click the Source tab to display the flow in XML.



9. Publish the event.

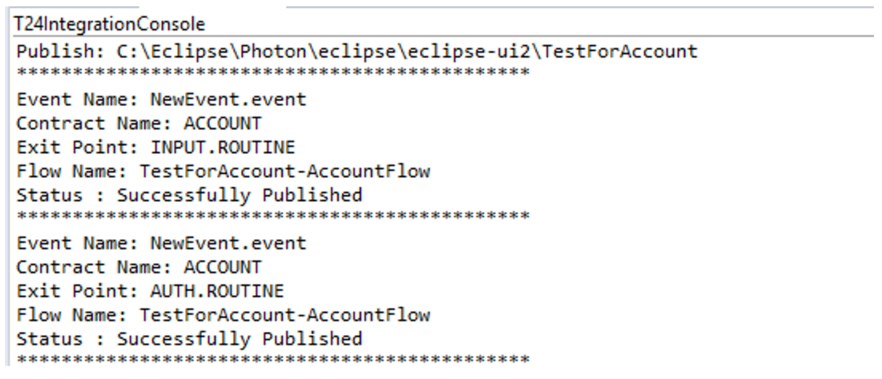

   When the Event Designer project is successfully published to Transact, the following two applications are updated.

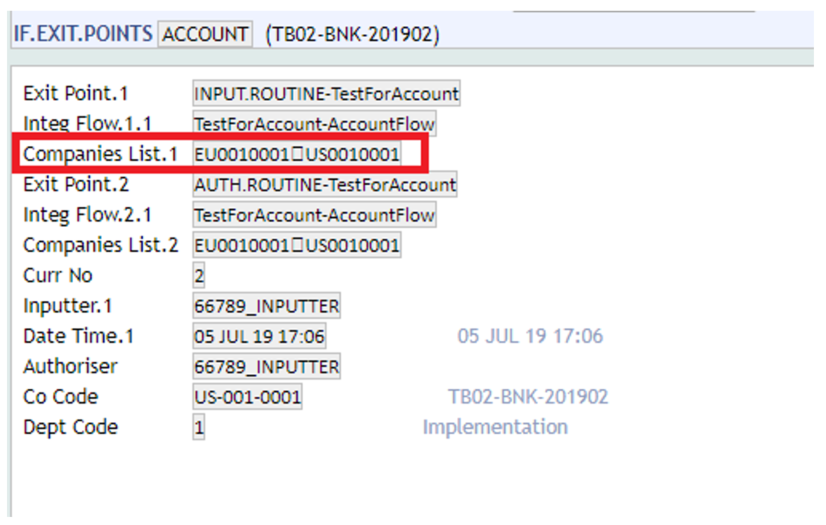

   • IF.EXIT.POINTS

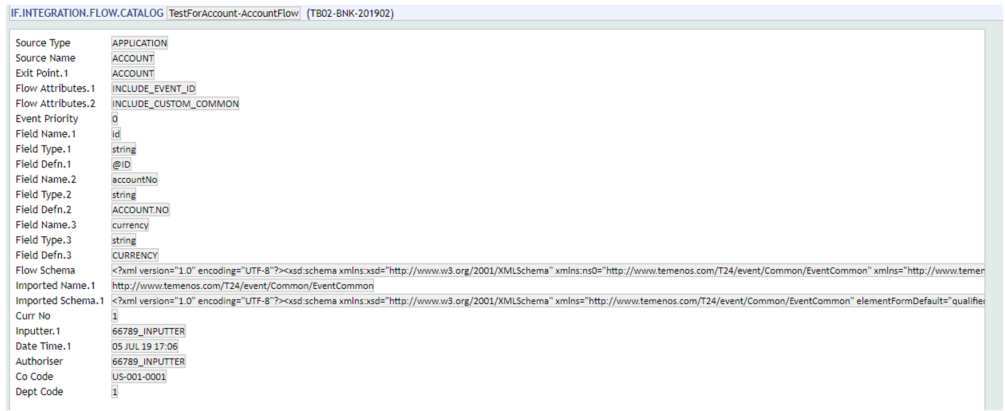

   • IF.INTEGRATION.FLOW.CATALOG



Related task:
Defining the Flow
