Configuring Debug (BROWSER.LISTEN)

You can enable Transact Explorer to perform debugging through JMS or Direct mode.

To configure debugging in JMS queues,

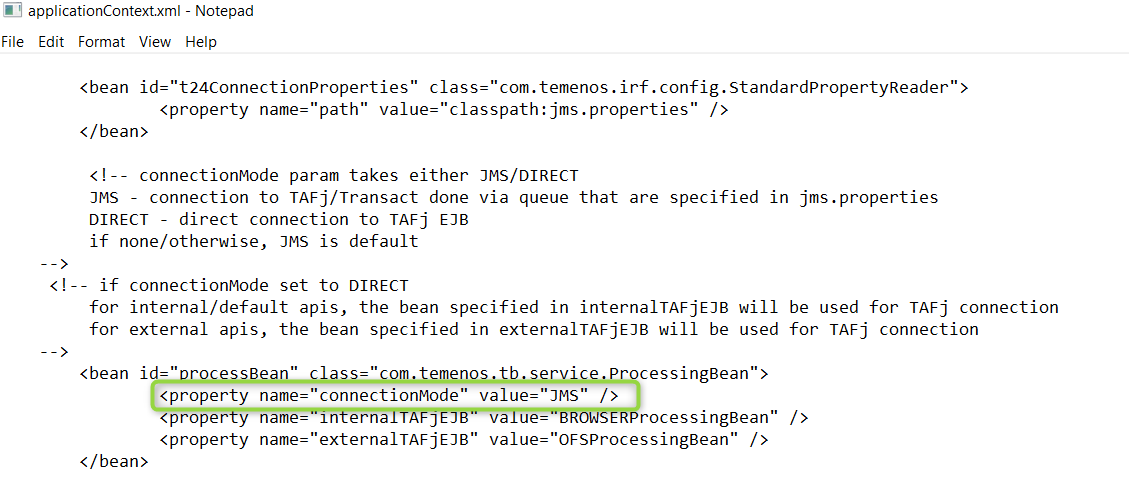

1. Open the tb-server.war\WEB-INF\classes\applicationContext.xml file and update the value of the ConnectionMode property name as JMS. The default value is Direct.

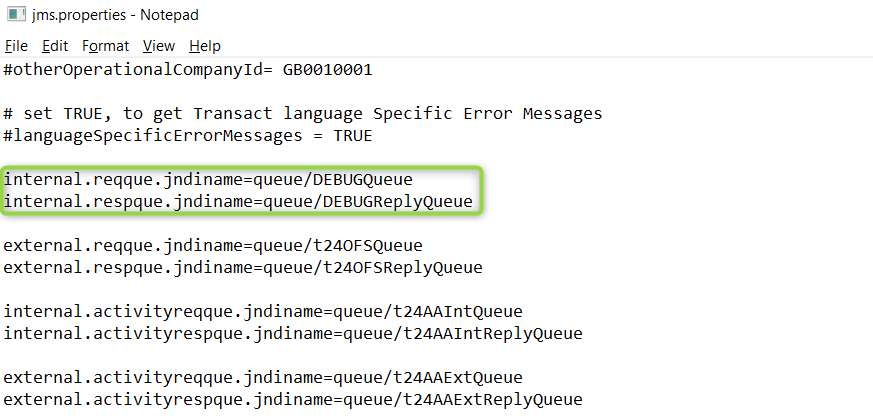

2. Open the tb-server.war\WEB-INF\classes\jms.properties file and replace the below values:
   • t24BROWSERQueue as DEBUGQueue
   • t24BROWSERReplyQueue as DEBUGReplyQueue

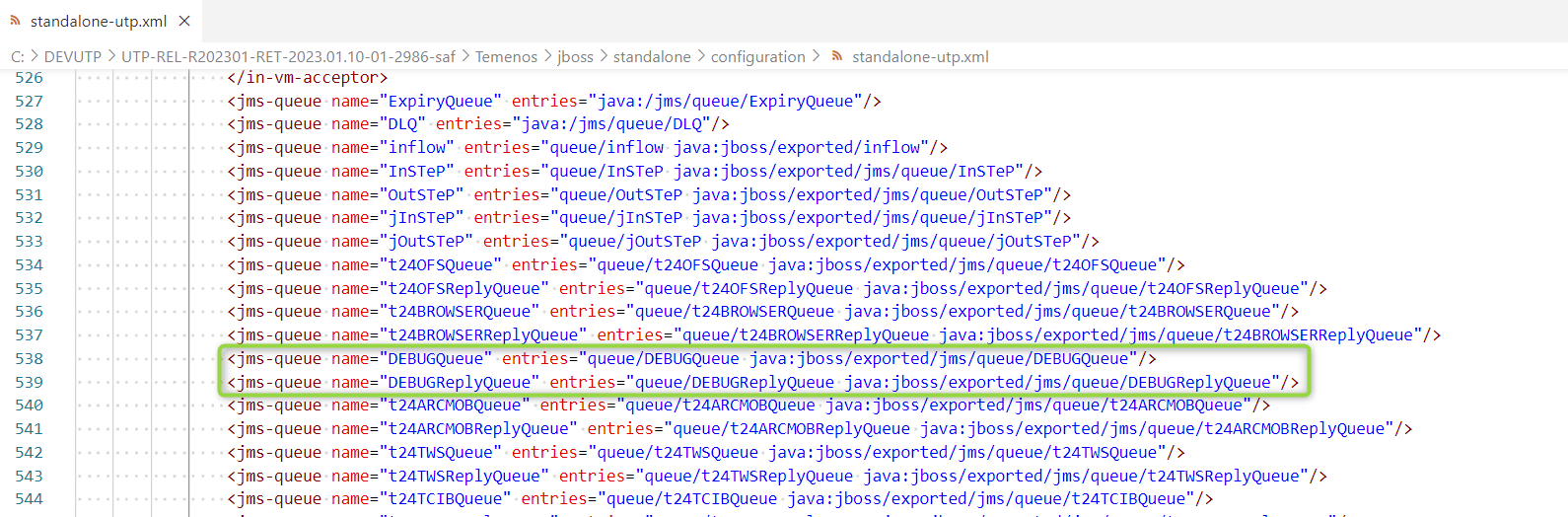

3. Configure the queues (DEBUGQueue and DEBUGReplyQueue) in Temenos\jboss\standalone\configuration\standalone-utp.xml

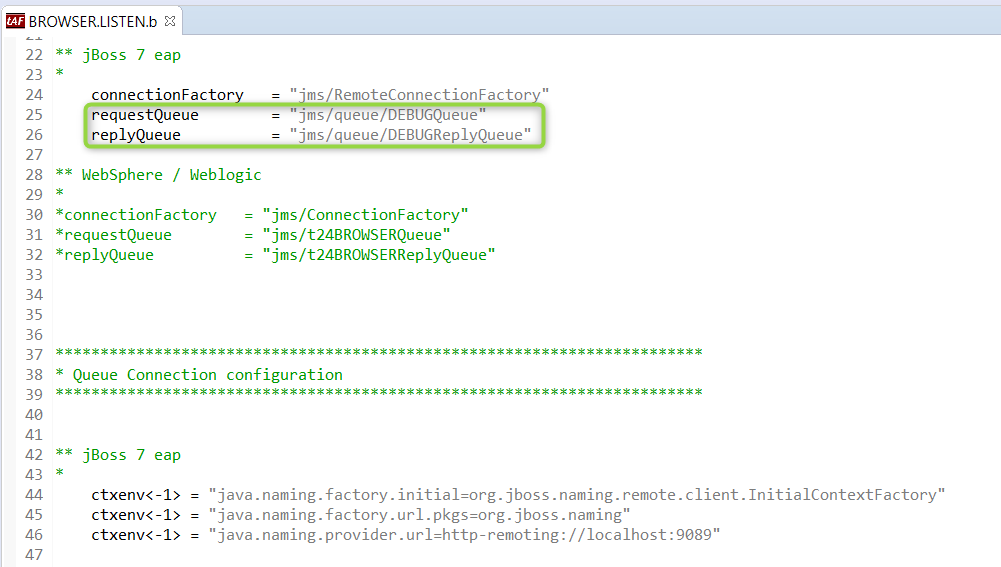

4. Configure the queues in Temenos\TAFJ\appserver\basic\TAFJ.BP\BROWSER.LISTEN.b and start Browser Listen.



You have now successfully configured Transact Explorer to perform debugging through JMS.
