TAFJ Tools
This section describes the TAFJ tools such as tRun, tDiag, tShowCheck, tCrypt, tFindDevice and tCreateBasicReplacement.
tRun
tRun is the main entry point for running a program. This is a script in the /bin directory. It is used to execute the compiled Basic files.
Syntax
tRun [-cf <configuration>[.properties]] <BASIC program> [<parameters>]
tDiag
tDiag is a part of the TAFJ tools. It provides information about your environment like the java version, TAFJ version, etc. The tDiag utility is used to display information about your TAFJ installation and projects setup. It is useful in pin-pointing problem areas of the setup.
Syntax
tDiag [-cf <configuration>[.properties]]
Run the following command to get information about all the projects you have configured
tDiag
The resulting output looks like this:
__________________________________________________________________
Home : 'C:\T24_DEV\Temenos\TAFJ'
Conf directory : 'C:\T24_DEV\Temenos\TAFJ/conf'
Log directory : 'C:\T24_DEV\Temenos\TAFJ\log'
Log directory T24 : 'C:\T24_DEV\Temenos\TAFJ\UD'
Log directory COMO : 'C:\T24_DEV\Temenos\TAFJ\UD\como'
Logging implementation : COMMON
Version : DEV_202304
__________________________________________________________________
java.home : C:\Temenos\Development\3rdParty\jdk\java-11-openjdk-11.0.16.1.1-1
java.vendor : Red Hat, Inc.
java.version : 11.0.16.1
os.arch : amd64
os.name : Windows 10
HostName : LCLTJ2Z2
IP Address : 10.92.4.11
Runtime : Double Byte SysSeparator
__________________________________________________________________
Default Project : 'tafj'
__________________________________________________________________
Common validation:
Common validation completed - All fine
__________________________________________________________________
- Project : 'tafj'
Java src dir : C:\T24_DEV\Temenos\TAFJ\data\tafj\java
Java classes dir : C:\T24_DEV\Temenos\TAFJ\data\tafj\classes
Precompile : C:\T24_DEV\Temenos\T24\Precompiled
Update dir : C:\T24_DEV\Temenos\TAFJ/updates
------------------------------------------------------------------
Java default package : com.temenos.t24
------------------------------------------------------------------
DataBase URL : jdbc:h2:tcp://localhost:1341/DEV
DataBase user : t24
------------------------------------------------------------------
Locking mode : JDBC
Locking name :
------------------------------------------------------------------
Current dir : C:\T24_DEV\Temenos\TAFJ/UD
Hold dir : C:\T24_DEV\Temenos\TAFJ/UD/&HOLD&
UD encoding : UTF-8
------------------------------------------------------------------
Timezone :
Local : en_US
Debug enabled : true
------------------------------------------------------------------
JMS logger enabled : false
Logger API enabled : true
------------------------------------------------------------------
Session monitor enabled : true
Session monitor host : localhost
Session monitor port : 8377
__________________________________________________________________
Project validation:
TAFJ Functions Version in DB : 22.1.4
TAFJ Functions Version in File : 22.1.4
No duplicated classes found.
tShow
tShow is part of the TAFJ tools. It provides information on the compiled Basic source. It can search for the resource on one single project and multiple ones. It can also produce a report of all the duplicate classes when run with –d argument.
Syntax
tShow [-cf <configuration>[.properties]] <SUBROUTINE.NAME>
tShow [-cf <configuration>[.properties]] -d
Run the following command to view the details of CACHE.READ.
tShow CACHE.READ
This will load the java class for CACHE.READ (CACHE_READ_cl.class) for all projects in your distribution and provide information like:
- BASIC source location
- Time of compilation
- Machine where it has been compiled
- Grammar applied to this file
- Whether it is having Basic Replacement
Below is the result:
Home : 'D:\Temenos\T24Enterprise\TAFJ'
- Project : 'TAFJ201305' [ FOUND ]
BASIC source : 'C:\Product\Version\201305\T24_BP\CACHE.READ'
BASIC package : ''
BASIC Import(s) : ''
JAVA class : 'file:/ 'C:\Product\Version\201305/lib/201305.jar!/com/temenos/t24/CACHE_READ_cl.class'
Compiled the : 12 Jul 2013 07:48:27
on : GVAL1201010
Compiled with TAFJ : < R13GA
Timestamp : 1342072107042
Grammar : 1
Include Basic Replacement : false
- Project : 'REGRESSION' [ MISSING ]
No such routine : 'CACHE.READ' (com.temenos.t24.CACHE_READ_cl.class)

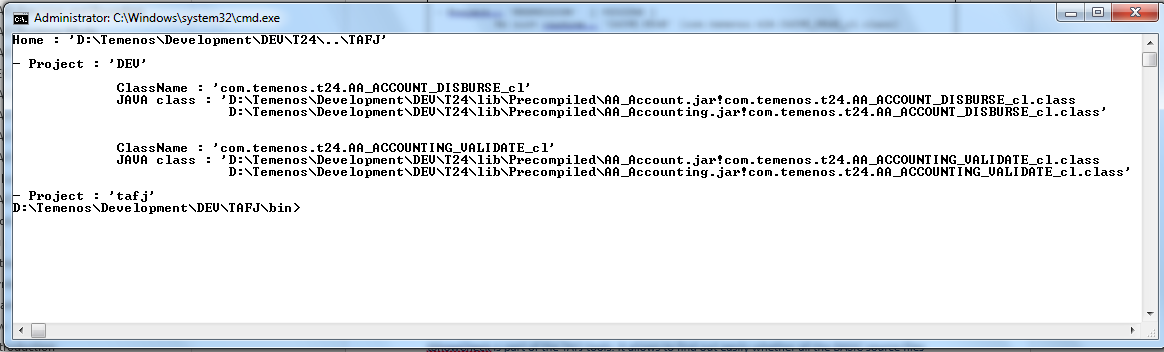

To view the duplicate classes report, use the following command:
tShow -d
Below is the result:
tShowCheck
tShowCheck is part of the TAFJ tools. It shows where all the BASIC source files have been compiled. It reports the error and warning messages to a flat file if a class is found missing in the precompiled or in the classes folder.
It takes three command line parameters:
- -s <PATH_OF_SOURCE_FOLDER>
- -p <PATH_OF_PRECOMPILED> or <PATH_OF_CLASSES_FOLDER>
- -r <PATH_OF_REPORT_FOLDER>
Syntax:
tShowCheck [-cf <configuration>[.properties]] –s [Path_of_source_folder] –p
[<path_of_precompiled> or <path_of_classes_folder>] –r [path_of_report_folder]
tShowCheck -s D:\T24_BP –p D:\T24_Precompiled\R10GA.jar –r d:\Report
It generates new report file with a name tShowReport.txt.
No such routine : 'SYSTEM.SANITY.CHECK' (com.temenos.t24.SYSTEM_SANITY_CHECK_cl.class) : [ MISSING ] Class found but failed to get informations for 'T.TRACE' (com.temenos.t24.T_TRACE_cl.class) : [ WARNING ] No such routine : 'TEMPLATE' (com.temenos.t24.TEMPLATE_cl.class) : [ MISSING ] No such routine : 'TSDK.CALLJ.PROG.JBASE' (com.temenos.t24.TSDK_CALLJ_PROG_JBASE_cl.class) : [ MISSING ] No such routine : 'TV.GET.AA.CHILD.TRANSACTION' (com.temenos.t24.TV_GET_AA_CHILD_TRANSACTION_cl.class) : [ MISSING ] No such routine : 'TWS.AA.GET.PROPERTY.TEMPLATES' (com.temenos.t24.TWS_AA_GET_PROPERTY_TEMPLATES_cl.class) : [ MISSING ] No such routine : 'Tws.isTws' (com.temenos.t24.Tws_isTws_6_cl.class) : [ MISSING ] No such routine : 'TWS.SCHEMA' (com.temenos.t24.TWS_SCHEMA_cl.class) : [ MISSING ] No such routine : 'TWS.SCHEMA.APPLICATION' (com.temenos.t24.TWS_SCHEMA_APPLICATION_cl.class) : [ MISSING ] No such routine : 'TWS.SCHEMA.ENQUIRY' (com.temenos.t24.TWS_SCHEMA_ENQUIRY_cl.class) : [ MISSING ] No such routine : 'TWS.SCHEMA.GENERATE' (com.temenos.t24.TWS_SCHEMA_GENERATE_cl.class) : [ MISSING ] No such routine : 'TWS.SCHEMA.PROCESS' (com.temenos.t24.TWS_SCHEMA_PROCESS_cl.class) : [ MISSING ] No such routine : 'TWS.SCHEMA.VERSION' (com.temenos.t24.TWS_SCHEMA_VERSION_cl.class) : [ MISSING ] No such routine : 'UPDATE.MVS.SVS.IN.FVS' (com.temenos.t24.UPDATE_MVS_SVS_IN_FVS_cl.class) : [ MISSING ] No such routine : 'User.getCompanyList' (com.temenos.t24.User_getCompanyList_15_cl.class) : [ MISSING ] No such routine : 'User.validateCompanySwitch' (com.temenos.t24.User_validateCompanySwitch_22_cl.class) : [ MISSING ] No such routine : 'Util' (com.temenos.t24.Util_3_cl.class) : [ MISSING ] No such routine : 'V.AA.ARR.DEFAULT.CUSTOMER' (com.temenos.t24.V_AA_ARR_DEFAULT_CUSTOMER_cl.class) : [ MISSING ] No such routine : 'V.AM.COMPARE.VER.AUTHRTN' (com.temenos.t24.V_AM_COMPARE_VER_AUTHRTN_cl.class) : [ MISSING ] No such routine : 'V.MB.CHILD.ACCOUNT.RULES' (com.temenos.t24.V_MB_CHILD_ACCOUNT_RULES_cl.class) : [ MISSING ] No such routine : 'V.MB.COMI.PROCESS' (com.temenos.t24.V_MB_COMI_PROCESS_cl.class) : [ MISSING ] No such routine : 'V.MB.CUST.PROCESS' (com.temenos.t24.V_MB_CUST_PROCESS_cl.class) : [ MISSING ] No such routine : 'V.MB.STO.CREATE.BAL' (com.temenos.t24.V_MB_STO_CREATE_BAL_cl.class) : [ MISSING ] No such routine : 'V.MB.STO.CREATE.FIX' (com.temenos.t24.V_MB_STO_CREATE_FIX_cl.class) : [ MISSING ] ************************************************************************************ Total Number of Routines Requested : 17929 Total Number of Routines Found : 17419 Total Number of Routines Failed : 505 Total Number of Routines with BasicReplacements : 5 Total Time taken : 0 Hrs 2 Mins 54 Secs
tCrypt
tCrypt is part of the TAFJ tools. It allows encrypting the password specified in temn.tafj.jdbc.password. This will encrypt the password with DES3 algorithm. The key used to encrypt is auto generated and stored in a file called .key in the conf directory of your TAFJ installation.
Syntax
tCrypt [-cf <configuration>[.properties]]
To encrypt the password for the database mentioned in configuration file, run the following command:
tCrypt -cf tafj
The resulting output looks like this:
C:\TAFJ\bin>tCrypt Configuration: 'C:\TAFJ\bin\..\conf\tafj.properties' Configuration file changed with encrypted password. C:\TAFJ\bin>
Below password is displayed in tafj.properties.
Before tCrypt, password will look like this:
temn.tafj.jdbc.username = t24 temn.tafj.jdbc.password = secret
After tCrypt, password changes:
temn.tafj.jdbc.username = t24 temn.tafj.jdbc.password = ::P6PeGkfV134=
Read Only Database resources can be configured with multiple databases separated by comma. Before tCrypt, password will look like this:
temn.tafj.jdbc.ro.username = t24user1,t24user2 temn.tafj.jdbc.ro.password = secret1,secret2
After tCrypt, each password separated by comma is encrypted and will look like this:
temn.tafj.jdbc.ro.username = t24user1,t24user2 temn.tafj.jdbc.ro.password = ::23hKMsIlA2UF5h1UnPi/0Q==, ::XK7aygpDaRk=
A new password for another database can be added and encrypted using tCrypt:
temn.tafj.jdbc.ro.username = t24user1,t24user2,t24user3 temn.tafj.jdbc.ro.password = ::23hKMsIlA2UF5h1UnPi/0Q==, ::XK7aygpDaRk=, secret3
After tCrypt, encrypted password will look like this:
temn.tafj.jdbc.ro.username = t24user1,t24user2,t24user3 temn.tafj.jdbc.ro.password = ::23hKMsIlA2UF5h1UnPi/0Q==, ::XK7aygpDaRk=, ::whHSwmvjtr0=
Also existing password can be changed and encrypted using tCrypt:
temn.tafj.jdbc.ro.username = t24user1,t24user2,t24user3 temn.tafj.jdbc.ro.password = ::23hKMsIlA2UF5h1UnPi/0Q==, newsecret2, ::whHSwmvjtr0=
After tCrypt, encrypted password will look like this:
temn.tafj.jdbc.ro.username = t24user1,t24user2,t24user3 temn.tafj.jdbc.ro.password = ::23hKMsIlA2UF5h1UnPi/0Q==, ::rtn2RQvhVfK56eRbPtCqEg==, ::whHSwmvjtr0=
tFindDevice
tFindDevice is part of the TAFJ tools. It provides information about your Default Printer on your system and a list of printers which are available on your system.
Syntax
tFindDevice
To Find the Default printer on your system, run the following command:
tFindDevice
The resulting output looks like this:
__________________________________________________________________ Device(s) on your system __________________________________________________________________ Default printer : >HP Officejet Pro 8600 (Network)< Printer 0 : >Send To OneNote 2010< Printer 1 : >Microsoft XPS Document Writer< Printer 2 : >HP0CE4D2 (HP Officejet Pro 8600)< Printer 3 : >HP Officejet Pro 8600 (Network)< Printer 4 : >Fax - HP Officejet Pro 8600 (Network)< Printer 5 : >Fax< __________________________________________________________________
tCreateBasicReplacement
This section shows how you can easily and safely write java code and invoke it directly from BASIC. You can write your own java class and setup the TAFJ runtime to use it instead of a BASIC subroutine. You can also invoke your java class without having a corresponding BASIC subroutine. Of course, the whole environment (like COMMONs) is available in your java class.
Writing your java class
The class you will invoke from basic (via a standard CALL(...)) must extends com.temenos.tafj.runtime.extension.BasicReplacement.
This class must also implement a static method INSTANCE and a public method stack.
You can use a tool available in the <TAFJ_HOME>/bin directory (tCreateBasicReplacement (.bat)) to avoid the copy and paste paradigm.
Syntax
tCreateBasicReplacment <full package_name_class>
To create a java MailSender, run the following command:
tCreateBasicReplacement com.temenos.t24.MailSender

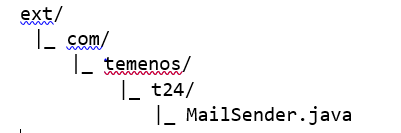

The above command creates the correct file structure and the class template in the ext directory:
The class MailSender contains all the necessary information for being invoked from BASIC. You will need to add your custom code in the method invoke (Object... args).
Method invoke
public jVar invoke(Object... args) {
//TODO : Add your code here.
String sMessage = args[0].toString();
((jVar)args[1]).set("Response 3 : " + sMessage);
return null;
}
The argument of this method is an array of objects. These objects are jVar (a variable) and you can cast them to get the correct reference.
Despite the fact that the TAFJ jVar object is not part of any API, below are few useful methods:
- args.length - To know how many parameters are passed.
- toString() - To convert the variable in String.
- set(String) - To set a value to a variable (for example, returning a value in BASIC).
- get(<fm>, <vm>, <sm>) - To get a specific FieldMark, ValueMark, SubvalueMark.
Class Compilation
You can compile the MailSender class as any other java class. The only dependency is on the TAFJCore.jar library. For example, you can type the command below from the <TAFJ_HOME>/ext directory:
javac -cp ../lib/* com.temenos.t24.MailSender.java
This will create a MailSender.class next to the java file.
BASIC Replacement Registration
Once the class has been implemented (and compiled!) you will need to let the runtime know about it. To do that, edit the property file of your project (default is tafj.properties) and find the basic replacement section. This section looks like this by default :
#******************************************************************** # # Basic Replacement # #******************************************************************** # # These properties are shortcuting the CALL statement to invoke # Directly a javaClass. # The Parameters are all jVar and the count must match the # Basic equivalent. # The count must not be discountinuous. This means that if # there is ...1, ...2, ...4 without ...3, ...4 will not be read and thus ignored. # temn.tafj.directory.ext = <tafj.home>/ext temn.tafj.migration.basic.1 = CHECK.ROUTINE.EXIST temn.tafj.migration.java.1 = com.temenos.tafj.basic.CheckRoutineExist temn.tafj.migration.basic.2 = EB.CREATE.VIEW temn.tafj.migration.java.2 = com.temenos.tafj.basic.EbCreateView temn.tafj.migration.basic.3 = EB.TRACE.CALL temn.tafj.migration.java.3 = com.temenos.tafj.basic.EbTraceCall temn.tafj.migration.basic.4 = EBS.CREATE.FILE temn.tafj.migration.java.4 = com.temenos.tafj.basic.EbsCreateFile
As you can see, there is already few basic replacements defined by default. The only thing you need to do is to add your replacement at the end of the list like this:
#******************************************************************** # # Basic Replacement # #******************************************************************** # # These properties are shortcuting the CALL statement to invoke # Directly a javaClass. # The Parameters are all jVar and the count must match the # Basic equivalent. # The count must not be discountinuous. This means that if # there is ...1, ...2, ...4 without ...3, ...4 will not be read and thus ignored. # temn.tafj.directory.ext = <tafj.home>/ext temn.tafj.migration.basic.1 = CHECK.ROUTINE.EXIST temn.tafj.migration.java.1 = com.temenos.tafj.basic.CheckRoutineExist temn.tafj.migration.basic.2 = EB.CREATE.VIEW temn.tafj.migration.java.2 = com.temenos.tafj.basic.EbCreateView temn.tafj.migration.basic.3 = EB.TRACE.CALL temn.tafj.migration.java.3 = com.temenos.tafj.basic.EbTraceCall temn.tafj.migration.basic.4 = EBS.CREATE.FILE temn.tafj.migration.java.4 = com.temenos.tafj.basic.EbsCreateFile temn.tafj.migration.basic.5 = SEND.MAIL temn.tafj.migration.java.5 = com.temenos.t24.MailSender
Now, instead of compiling SEND.MAIL, TAFJ Compiler will create a wrapper to call your Basic Replacement. When TAFJ will execute a CALL SEND.MAIL(...), it will invoke the method invoke(Object... args) of your class com.temenos.t24.MailSender.
