Appendix

This section covers the additional details about WebLogic application server.

Analysing MBeans with jConsole

You can analyse MBeans with jConsole using the following procedure.

  1. Start jconsole as shown below:

    jconsole -J-Djava.class.path=%JAVA_HOME%\lib\jconsole.jar;%WL_HOME%\wlserver_12.1\server\lib\wljmxclient.jar –J-Djmx.remote.protocol.provider.pkgs=weblogic.management.remote

  2. Login with the URL below.

    service:jmx:iiop://localhost:7001/jndi/weblogic.management.mbeanservers.runtime

  3. Specify the same username and password that you used to login in WebLogic Admin console.

Setting up WebLogic HTTP Channels

You can setup WebLogic HTTP Channels using the following procedure.

  1. In the WLS admin console, click Environment > Servers > your server name.
  2. Click the Protocols tab.
  3. Click New and follow the wizard. Specify a name and choose http for your protocol drop-down.

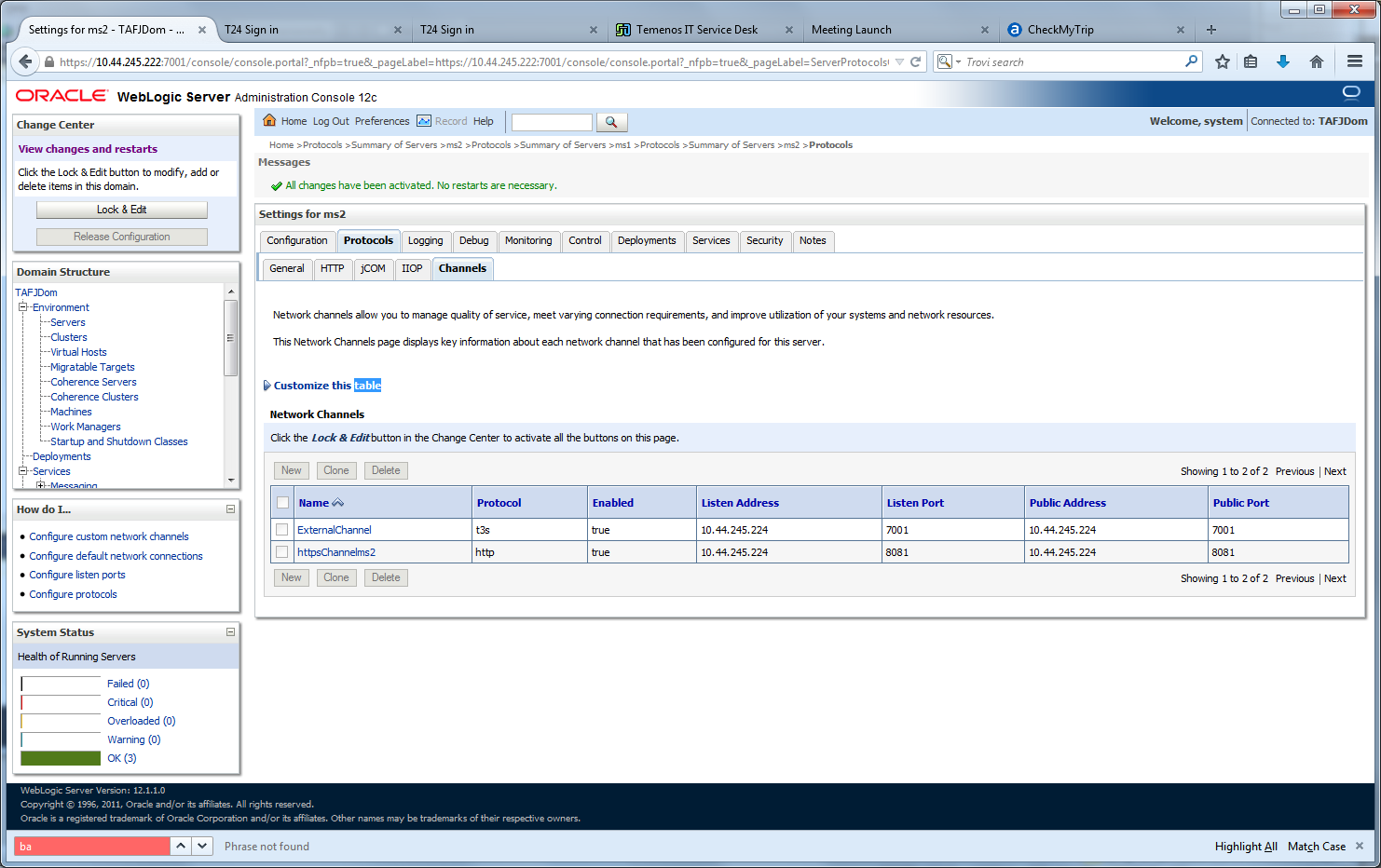

  4. Specify the port details as shown below.

The example below uses the same listen address or port as external listen address or port.

Setting up WebLogic with MQ Series

For more information, see the following references:

http://docs.oracle.com/cd/E24329_01/web.1211/e24385/advance_config.htm#i1081815

http://mokandra.blogspot.fr/2012/08/integrating-websphere-mq-6-with-bea.html

http://www.ibm.com/developerworks/websphere/library/techarticles/0604_kesavan/0604_kesavan.html
