One-Helm Implementation for SRMS2.0 Microservice in AKS

SRMS2.0 One-helm deployment package contains simplified deployment scripts with consolidated deployment parameters, deployment types, and databases. Only the .sh scripts are retained in the deployment packages. Single helm charts are merged into one chart.

Azure Kubernetes Service (AKS) is a managed Kubernetes service that allows you to quickly deploy and manage clusters.

This section provides steps and configurations to deploy SRMS2.0 microservice in the Azure AKS environment.

Installing Azure AKS Deployment

Before you proceed with the deployment, ensure to have the Helm and kubectl – Kubernetes command-line tool installed in the system.

To install the Azure AKS deployment,

Unzip ms-servicerequest2-helm-mongo-pack-XXX.zip or ms-servicerequest2-helm-postgres-pack-XXX.zip
Load the images from the local to the Docker container.
Create a Resource Group for the Azure Kubernetes Cluster.
Configure the Azure AKS Cluster.
Create an Azure Container Registry (ACR) instance and tag a container image for ACR.
Upload the image to ACR and view images in your registry.
Create an Event hub to maintain a Kafka connection.
Configure kubectl to connect to your AKS cluster.
Deploy the generic config in Kubernetes. Refer One-Helm Implementation for Genericconfig Microservice in AKS to know more about the steps to deploy GeneriConfig microservice.

Pre-Installation Requirements

Refer Pre-installation Requirements section to know more about the steps required to deploy Adapter Microservice in K8 deployment.

Loading images inside Docker

To load the images inside the docker,

Unzip ms-servicerequest2-helm-mongo-pack-XXX.zip or ms-servicerequest2-helm-postgres-pack-XXX.zip. The images for the services are available inside the unzipped pack, the images folder.
You can obtain the images saved in tar format using the docker save command (The number of tar files depends on the number of services required for the microservice). These images should be pushed into the repository.

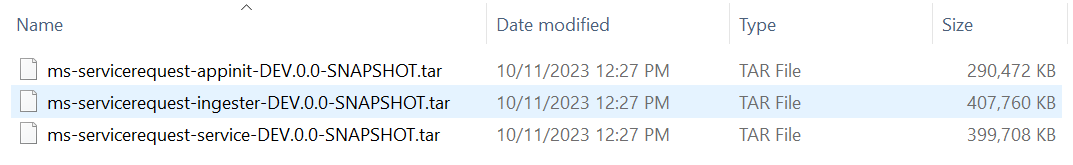

Load the images from ms-servicerequest2-helm-postgres-pack-XXX > Images.

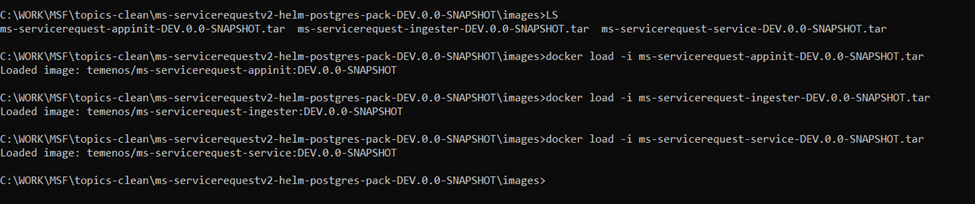

Use the docker load command to get the images. For example, docker load --input ms-servicerequest-appinit-XXX.tar.
Load all the images available inside the folder.

Use of .sh file in AKS folder

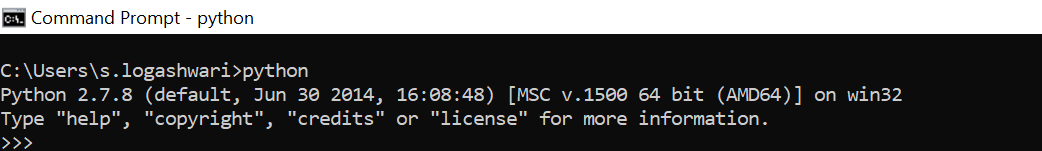

This file is used to create and store secret details such as User ID, its password or JWT token, and so on. If you have the python version 2.7.8 (Supported one), comment the existing line and overwrite the SP_APP_ID with the command below.

SP_APP_ID=$(az ad sp list --display-name http://${SERVICE_PRINCIPAL_NAME} --query [].appId --output tsv).

Configuring .env files for Deployment

This section covers the required configuration changes to be done for Azure AKS deployment.

servicerequest.env file in common Folder

This file is available in the scripts > Common folder. This file contains variables that are referred to in other .sh files. Default values are already available in this file. These are enough to create a resource group in Azure AKS. You can create a new resource group with a different name using the following configuration changes.

Export Variable	Change
SUBSCRIPTION_ID	Mention the subscription Id what you own in Azure portal. Example,your subscription would be “e77b124b-df70-4526-a09b-c8d2619386e3” kindly update the id here.
RESOURCE_GROUP_NAME	By default, the resource group name is maintained as servicerequest. The value of this variable can be overridden if necessary.
AKS_CLUSTER_NAME	By default, the aks cluster name is maintained as servicerequestakscluster. The value of this variable can be overridden if necessary.
AKS_NAME	By default, the aks name is maintained as servicerequestakscluster. The value of this variable can be overridden if necessary.
ACR_NAME	By default, the acr name is maintained as servicerequestacr. The value of this variable can be overridden if necessary.
SERVICE_PRINCIPAL_NAME	By default, the service principal name is maintained as servicerequestacr. The value of this variable can be overridden if necessary.
STORAGE_ACCOUNT_NAME	By default, the storage name is maintained as servicerequest. The value of this variable can be overridden if necessary.

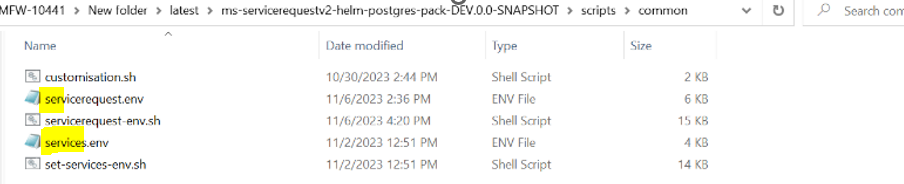

servicerequest.env and services.env file from common folder

These files are available in Scripts > Common folder as above and any configuration to be made can be done in this files before deploying SRMS2.0 microservice in AKS.

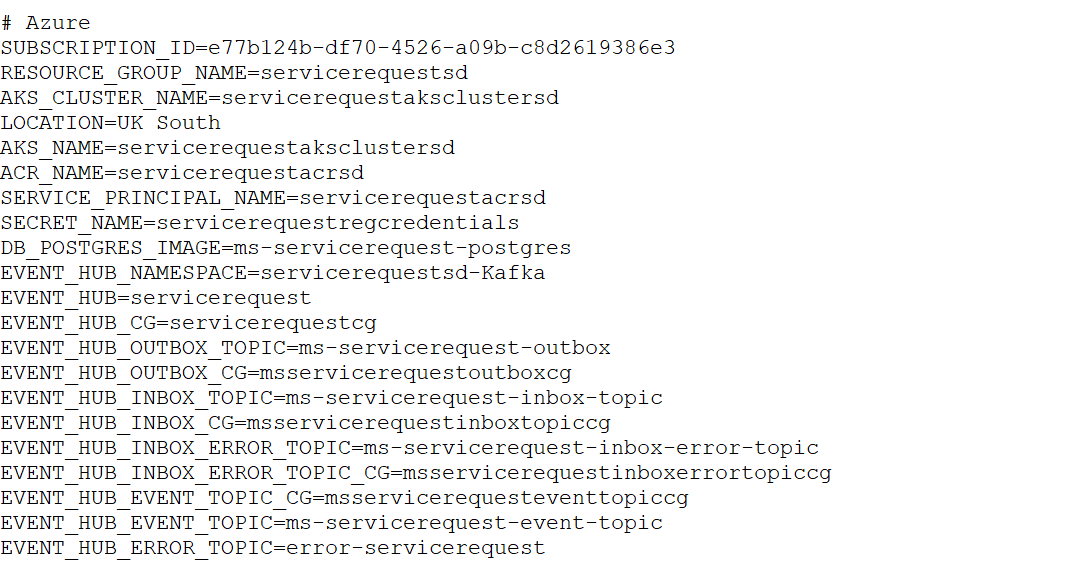

The values configured for the AKS deployment of SRMS2.0 microservice are shown in the screenshot below.

Before running the above script, configure the following files with the given values.

File name	Export Variable	Change
servicerequest.env	TAG	By default, it is mentioned as DEV/21.0.0 export tag="DEV" The required release version should be updated.
services.env	DATABASE_MONGODB_CONNECTIONSTRING	By default, the mongo atlas URL is available. export MONGODB_CONNECTIONSTR="mongodb+srv://badri0307:badri0307@mongodb01.qjebf.azure.mongodb.net/test" if any local/cloud database is connected, Kindly update the specific URL here
servicerequest.env	DATABASE_POSTGRESQL_CONNECTIONSTRING (if required to connect Postgresql Azure Db)	By default, the sample Postgresql URL is available. DATABASE_POSTGRESQL_CONNECTIONSTRING= jdbc:postgresql://servicerequestdb.postgres.database.azure.com:5432/servicerequestdb
servicerequest.env	AZURE_DATABASE_POSTGRESQL_DBNAME	Can be servicerequestdb
servicerequest.env	DATABASE_POSTGRESQL_USERNAME (if required to connect Postgresql Azure Db)	By default, username is myadmin.
servicerequest.env	DATABASE_POSTGRESQL_PASSWORD (if required to connect Postgresql Azure Db)	By default, the sample Postgresql Password is Passw0rd!.
servicerequest.env	RESOURCE_GROUP_NAME	By default, the resource group name is maintained as servicerequest The value of this variable can be overridden if necessary.
servicerequest.env	AKS_CLUSTER_NAME	By default, the aks cluster name is maintained as servicerequestakscluster. The value of this variable can be overridden if necessary.
servicerequest.env	ACR_NAME	By default, the aks name is maintained as servicerequestacr. The value of this variable can be overridden if necessary. The ACR name should be the same name used in env.sh from the Setup folder.
servicerequest.env	EVENT_HUB_NAMESPACE	By default, the event hub namespace is maintained as servicerequest-Kafka. The value of this variable can be overridden if necessary.
servicerequest.env	RUNTIME_ENV	should be AZURE by default
servicerequest.env	GC_CONFIG	Configuration microservice basepathURL should be configured here (Mandatory) Example: https://genericconfigappdm.azurewebsites.net/api/v2.0.0/
servicerequest.env	API_KEY	Code generated in configuration microservice should be configured here. (Mandatory) Example: JvxYjKi9axfirEu_P-nwQx1KRRZOb3qVIggGmjtiquRsAzFu-uDU7A==
servicerequest.env	EX_BASEPATH	Basepath URL for the API called in python script to be configured here http://dev-servicerequestapi-dev00-snapshot:80/ms-servicerequest-api/api/
servicerequest.env	EX_RESPATH	Resource path for the API called in the python script to be configured here v1.0.0/order/servicerequests/requestType/

Deployment of SRMS2.0 Service in AKS

To run the SRMS2.0 microservice in the Azure Kubernetes package,

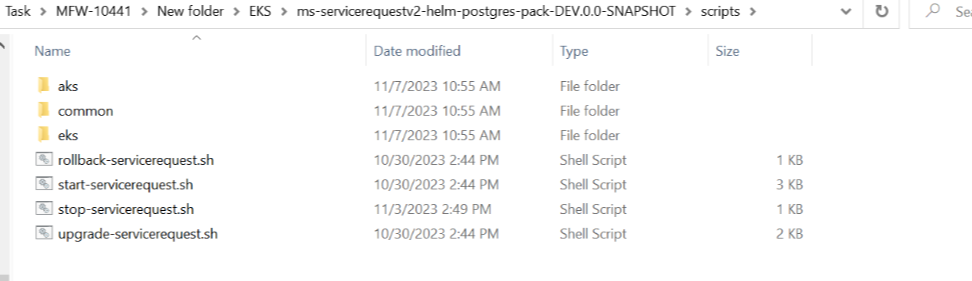

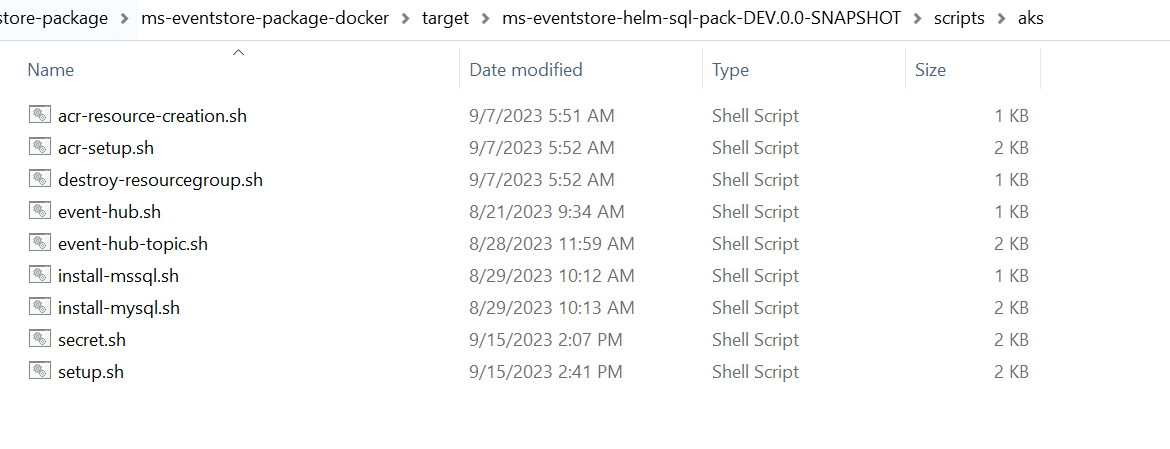

Open gitbash in administrator mode and navigate to ms-servicerequest2-helm-postgres -pack-XXX/ ms-servicerequest2-helm-mongo -pack-XXX > Scripts > aks. The corresponding AKS scripts that run to create required azure resources such as acr-resource-creation, acr-setup, destroy-resourcegroup, env, event-hub, event-hub-topic, secret, setup are available in Scripts/aks folder.

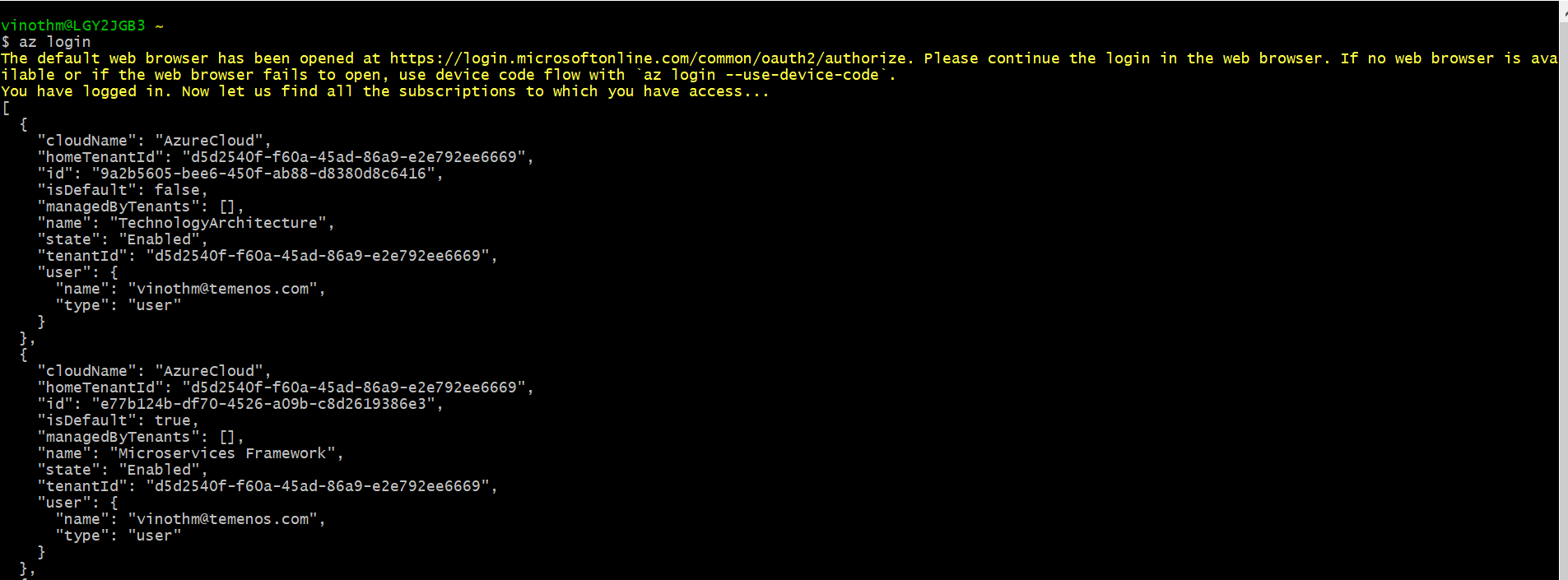

Login into the Azure account using the az login command as shown in the screenshot below.
Run ./destroy-resourcegroup.sh to remove the resource group, container service, and all related resources.

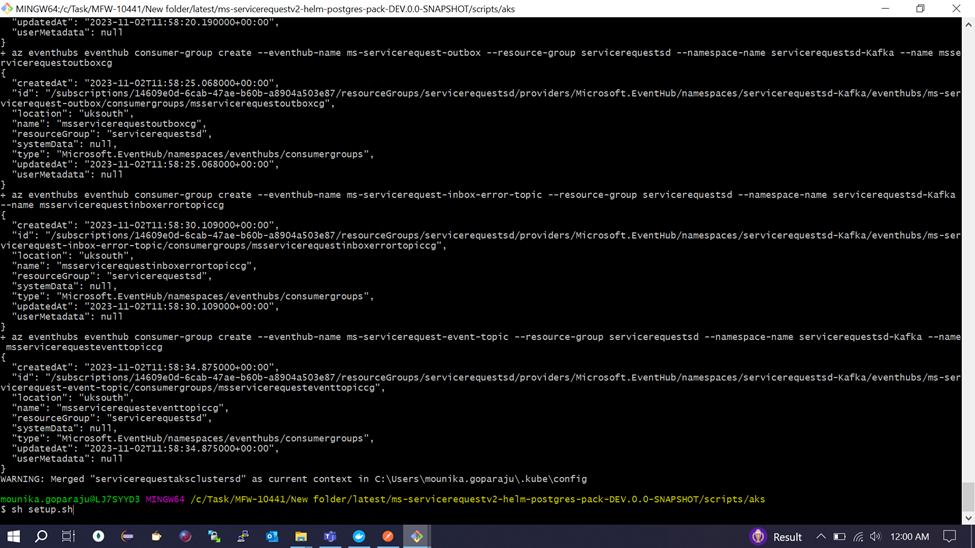

Run setup.sh<dbname> to call all the shell scripts available in the .sh folder.
- For Postgresql - ./setup.sh postgresql
- For mongodb - ./setup.sh mongodb
Log in to portal.azure.com with a valid Azure login id to check the resource group created.

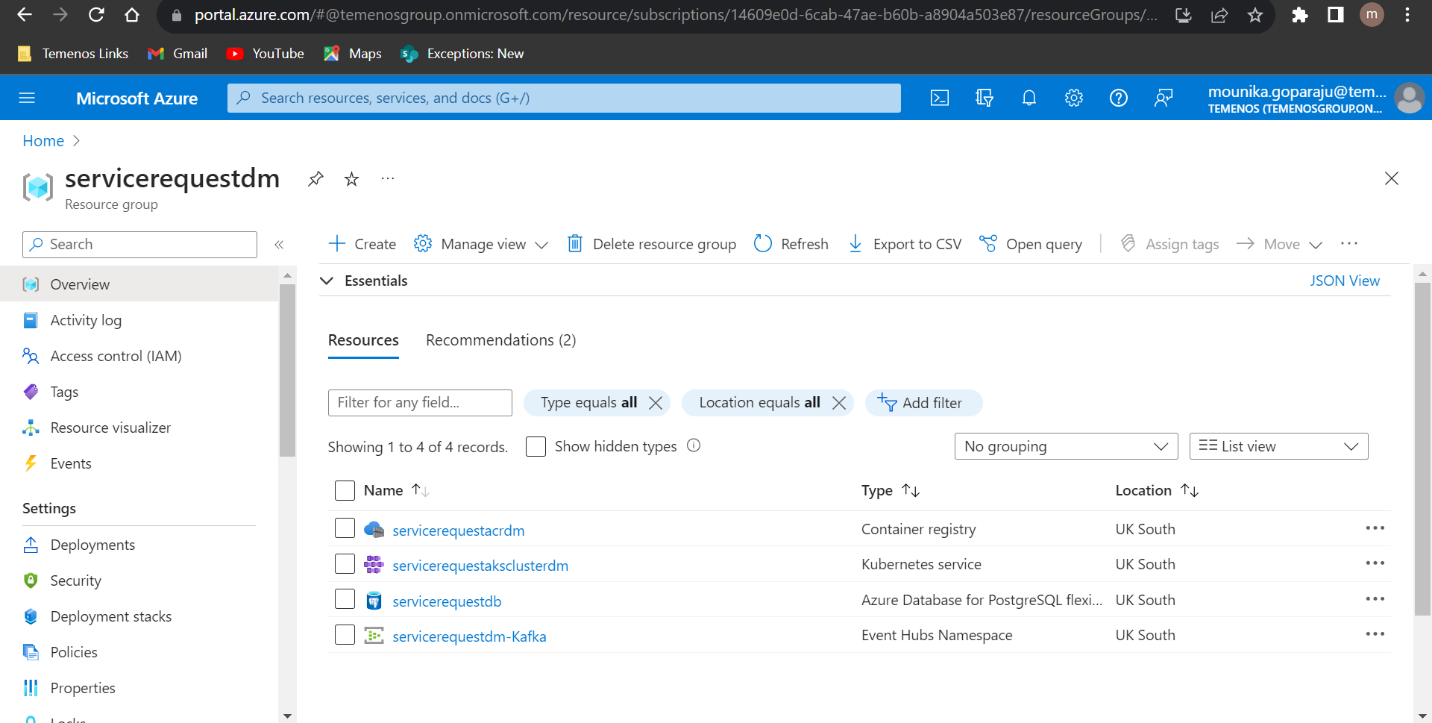

Navigate to Resource groups from home and change the filter to all. The system displays the resource group in the list as shown in the screenshot below. A sample resource group is created with the name servicerequestsd.
Navigate inside the Resource group folder to check whether container registry, Kubernetes service, Storage account, EventHub Namespace.

To install SRMS2.0 microservice Ms in Azure AKS, perform the following steps.

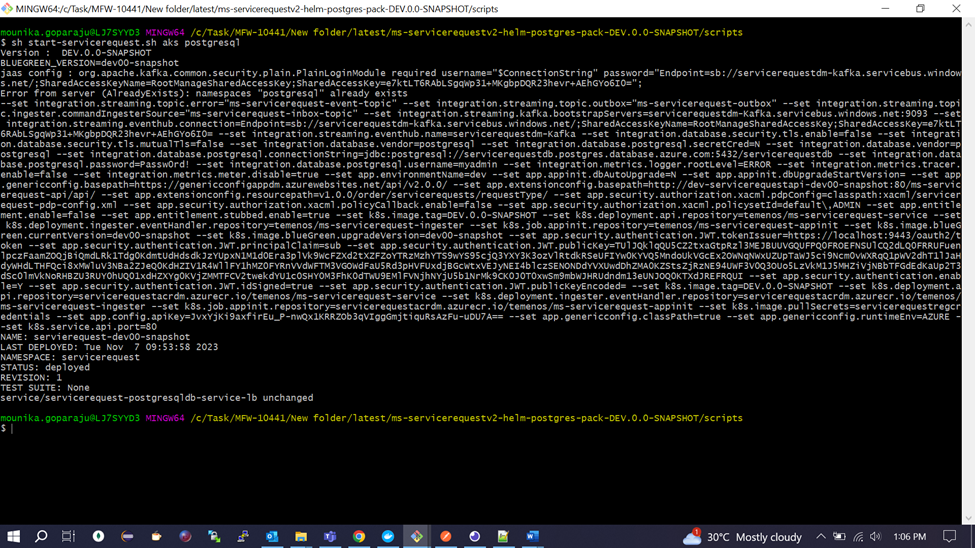

Navigate to Scripts > aks folder. You can run the start-servicerequest.sh available in aks folder using a normal git bash prompt or any shell prompt. The SRMS2.0 microservice is up and running in AKS.
The command syntax for the deployment is ./start-servicerequest.sh <<deployment type>> <<database type>>.
For example, ./start-servicerequest.sh aks postgresql
./start-servicerequest.sh aks mongodb

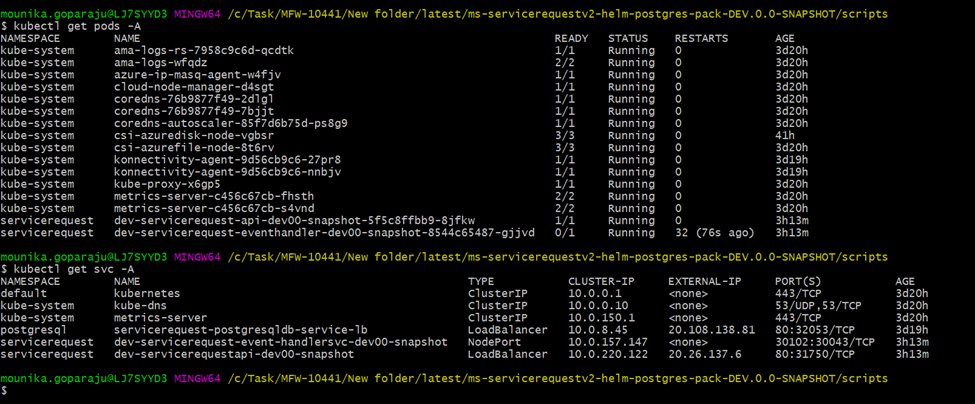

Check whether the deployment is proper without any errors and the pods are running successfully as below.

Part of the same deployment, a node port service for adapter api is created with port as 80 and public IP is exposed in External IP.

Deployment Validation

To check whether the connection is up and running, run the sample service.

Create the Service Request Schema

This API is used to whether the Azure AKS connection is up and running.

POST/order/serviceRequests/serviceRequestConfiguration?requestType={requestType}

Sample URL

[http/https]://<<HOST_NAME>>[:<<PORT>>]/ms-servicerequest-api/api/v1.0.0/order/serviceRequests/serviceRequestConfiguration?requestType={requestType}

Request

{
    "serviceRequestSchema": {
        "$schema": "http://json-schema.org/draft-04/schema#",
        "type": "object",
        "properties": {
            "accountNo": {
                "type": "string",
                "title": "Account Number",
                "description": "Account No of the user"
            },
            "chequeType": {
                "type": "string",
                "title": "ChequeBook Type",
                "description": "Type of the chequebook"
            },
            "notes": {
                "type": "string",
                "title": "Notes",
                "description": "Notes"
            }
        },
        "required": [
            "accountNo",
            "chequeType",
            "notes"
        ]
    },
    "serviceRequestProperties": [
        {
            "key": "id",
            "value": "CHQ"
        },
        {
            "key": "noofapproval",
            "value": "3"
        }
    ]
}

Sample Response

{    "serviceRequestId": "chequebook",
    "message": "Service Request Type Schema Created Successfully",
    "responseStatus": "Created"
}
