Schemas and Transact Data Records for Inflow without PW

Inflow without PW uses request schemas.

When Function I is used

The schemas folder holds the request schemas for the published workflow. By default, there are three schemas in this folder.

Schema project_name-inflow_design

This holds the definition of all the fields that need to be passed to Transact.

<?xml version="1.0" encoding="utf-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns0="http://www.temenos.com/T24/inflow/Common/RequestCommon"
	xmlns="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer" elementFormDefault="qualified"
	targetNamespace="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer">
	<xsd:import namespace="http://www.temenos.com/T24/inflow/Common/RequestCommon" schemaLocation="Common-RequestCommon.xsd" />
	<xsd:element name="CreateCustomer">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element ref="requestCommonDetails" minOccurs="1" maxOccurs="1" />
				<xsd:element ref="accountcaopenlcy" minOccurs="0" maxOccurs="unbounded" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
	<xsd:element name="requestCommonDetails">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="requestCommon" type="ns0:RequestCommon" minOccurs="0" nillable="true" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
	<xsd:element name="accountcaopenlcy">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="category" minOccurs="0" nillable="true">
					<xsd:simpleType>
						<xsd:restriction base="xsd:string">
							<xsd:maxLength value="6" />
						</xsd:restriction>
					</xsd:simpleType>
				</xsd:element>
				<xsd:element name="currency" type="ns0:t24Currency" minOccurs="0" nillable="true" />
				<xsd:element name="customer" minOccurs="0" nillable="true">
					<xsd:simpleType>
						<xsd:restriction base="xsd:string">
							<xsd:maxLength value="10" />
						</xsd:restriction>
					</xsd:simpleType>
				</xsd:element>
			</xsd:sequence>
			<xsd:attribute name="id" type="xsd:string" use="optional" />
			<xsd:attribute name="index" type="xsd:string" use="optional" />
		</xsd:complexType>
	</xsd:element>
</xsd:schema>

The Request Common Schema

This holds the common schema definition fields.

<?xml version="1.0" encoding="utf-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="http://www.temenos.com/T24/inflow/Common/RequestCommon"
	elementFormDefault="qualified" targetNamespace="http://www.temenos.com/T24/inflow/Common/RequestCommon">
	<xsd:complexType name="RequestCommon">
		<xsd:sequence>
			<xsd:element name="requestType" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="companyCode" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="userName" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="messageId" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="timestamp" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="transactionMode" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="customCommon" minOccurs="0" maxOccurs="unbounded">
				<xsd:complexType>
					<xsd:simpleContent>
						<xsd:extension base="xsd:string">
							<xsd:attribute name="name" type="xsd:string" />
						</xsd:extension>
					</xsd:simpleContent>
				</xsd:complexType>
			</xsd:element>
		</xsd:sequence>
	</xsd:complexType>
	<xsd:simpleType name="t24CurrencyType">
		<xsd:restriction base="xsd:string">
			<xsd:pattern value="[A-Z]{3}" />
			<xsd:maxLength value="3" />
		</xsd:restriction>
	</xsd:simpleType>
	<xsd:simpleType name="t24DataRemovalPattern">
		<xsd:restriction base="xsd:string">
			<xsd:enumeration value="-" />
			<xsd:enumeration value="|-|" />
		</xsd:restriction>
	</xsd:simpleType>
	<xsd:simpleType name="t24Decimal">
		<xsd:union memberTypes="t24DataRemovalPattern xsd:decimal" />
	</xsd:simpleType>
	<xsd:simpleType name="t24Date">
		<xsd:union memberTypes="t24DataRemovalPattern xsd:date" />
	</xsd:simpleType>
	<xsd:simpleType name="t24Currency">
		<xsd:union memberTypes="t24DataRemovalPattern t24CurrencyType" />
	</xsd:simpleType>
</xsd:schema>

A Container Schema

This holds the schema representing multiple inflows of the same type.

<?xml version="1.0" encoding="utf-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified"
	targetNamespace="http://www.temenos.com/T24/inflow/InflowProject/ContainerCreateCustomer" xmlns:ns1="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer"
	xmlns:container="http://www.temenos.com/T24/inflow/InflowProject/ContainerCreateCustomer">
	<xsd:import namespace="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer" schemaLocation="InflowProject-CreateCustomer.xsd" />
	<xsd:element name="inflowContainer">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="containerId" type="xsd:string" minOccurs="0" maxOccurs="1" />
				<xsd:element name="containerTimestamp" type="xsd:string" minOccurs="0" maxOccurs="1" />
				<xsd:element name="containerDataSource" type="xsd:string" minOccurs="0" maxOccurs="1" />
				<xsd:element name="inflowRequest" type="container:inflowRequestType" minOccurs="1" maxOccurs="1" />
				<xsd:element name="containerCustomCommon" minOccurs="0" maxOccurs="unbounded">
					<xsd:complexType>
						<xsd:simpleContent>
							<xsd:extension base="xsd:string">
								<xsd:attribute name="name" type="xsd:string" />
							</xsd:extension>
						</xsd:simpleContent>
					</xsd:complexType>
				</xsd:element>
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
	<xsd:complexType name="inflowRequestType">
		<xsd:sequence>
			<xsd:element ref="ns1:CreateCustomer" minOccurs="1" maxOccurs="unbounded" />
		</xsd:sequence>
	</xsd:complexType>
</xsd:schema>

T24 Data Record

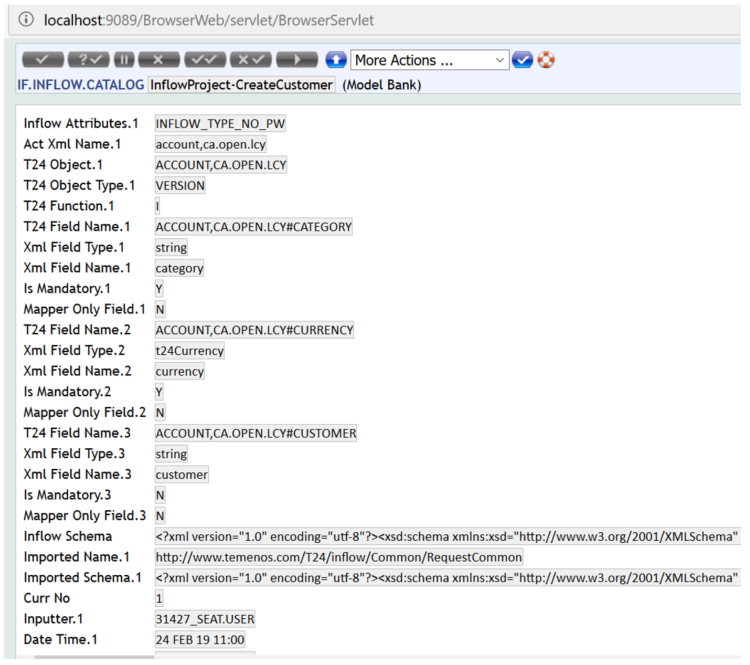

Below is illustrated an inflow record in table IF.INFLOW.CATALOG, when function I is used.

When Function I is not used

The schemas folder holds the request schemas for the published workflow. By default, there are three schemas.

Schema Project name-inflow design

This holds only the ID and the index attribute to be passed to Transact.

<?xml version="1.0" encoding="utf-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:ns0="http://www.temenos.com/T24/inflow/Common/RequestCommon"
	xmlns="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer" elementFormDefault="qualified"
	targetNamespace="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer">
	<xsd:import namespace="http://www.temenos.com/T24/inflow/Common/RequestCommon" schemaLocation="Common-RequestCommon.xsd" />
	<xsd:element name="CreateCustomer">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element ref="requestCommonDetails" minOccurs="1" maxOccurs="1" />
				<xsd:element ref="accountcaopenlcy" minOccurs="0" maxOccurs="unbounded" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
	<xsd:element name="requestCommonDetails">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="requestCommon" type="ns0:RequestCommon" minOccurs="0" nillable="true" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
	<xsd:element name="accountcaopenlcy">
		<xsd:complexType>
			<xsd:sequence />
			<xsd:attribute name="id" type="xsd:string" use="optional" />
			<xsd:attribute name="index" type="xsd:string" use="optional" />
		</xsd:complexType>
	</xsd:element>
</xsd:schema>

Request Common Schema

This contains the common schema definition fields.

<?xml version="1.0" encoding="utf-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="http://www.temenos.com/T24/inflow/Common/RequestCommon"
	elementFormDefault="qualified" targetNamespace="http://www.temenos.com/T24/inflow/Common/RequestCommon">
	<xsd:complexType name="RequestCommon">
		<xsd:sequence>
			<xsd:element name="requestType" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="companyCode" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="userName" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="messageId" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="timestamp" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="transactionMode" type="xsd:string" minOccurs="0" maxOccurs="1" />
			<xsd:element name="customCommon" minOccurs="0" maxOccurs="unbounded">
				<xsd:complexType>
					<xsd:simpleContent>
						<xsd:extension base="xsd:string">
							<xsd:attribute name="name" type="xsd:string" />
						</xsd:extension>
					</xsd:simpleContent>
				</xsd:complexType>
			</xsd:element>
		</xsd:sequence>
	</xsd:complexType>
	<xsd:simpleType name="t24CurrencyType">
		<xsd:restriction base="xsd:string">
			<xsd:pattern value="[A-Z]{3}" />
			<xsd:maxLength value="3" />
		</xsd:restriction>
	</xsd:simpleType>
	<xsd:simpleType name="t24DataRemovalPattern">
		<xsd:restriction base="xsd:string">
			<xsd:enumeration value="-" />
			<xsd:enumeration value="|-|" />
		</xsd:restriction>
	</xsd:simpleType>
	<xsd:simpleType name="t24Decimal">
		<xsd:union memberTypes="t24DataRemovalPattern xsd:decimal" />
	</xsd:simpleType>
	<xsd:simpleType name="t24Date">
		<xsd:union memberTypes="t24DataRemovalPattern xsd:date" />
	</xsd:simpleType>
	<xsd:simpleType name="t24Currency">
		<xsd:union memberTypes="t24DataRemovalPattern t24CurrencyType" />
	</xsd:simpleType>
</xsd:schema>

The Container schema

<?xml version="1.0" encoding="utf-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" elementFormDefault="qualified"
	targetNamespace="http://www.temenos.com/T24/inflow/InflowProject/ContainerCreateCustomer" xmlns:ns1="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer"
	xmlns:container="http://www.temenos.com/T24/inflow/InflowProject/ContainerCreateCustomer">
	<xsd:import namespace="http://www.temenos.com/T24/inflow/InflowProject/CreateCustomer" schemaLocation="InflowProject-CreateCustomer.xsd" />
	<xsd:element name="inflowContainer">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="containerId" type="xsd:string" minOccurs="0" maxOccurs="1" />
				<xsd:element name="containerTimestamp" type="xsd:string" minOccurs="0" maxOccurs="1" />
				<xsd:element name="containerDataSource" type="xsd:string" minOccurs="0" maxOccurs="1" />
				<xsd:element name="inflowRequest" type="container:inflowRequestType" minOccurs="1" maxOccurs="1" />
				<xsd:element name="containerCustomCommon" minOccurs="0" maxOccurs="unbounded">
					<xsd:complexType>
						<xsd:simpleContent>
							<xsd:extension base="xsd:string">
								<xsd:attribute name="name" type="xsd:string" />
							</xsd:extension>
						</xsd:simpleContent>
					</xsd:complexType>
				</xsd:element>
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
	<xsd:complexType name="inflowRequestType">
		<xsd:sequence>
			<xsd:element ref="ns1:CreateCustomer" minOccurs="1" maxOccurs="unbounded" />
		</xsd:sequence>
	</xsd:complexType>
</xsd:schema>

Transact Data Record

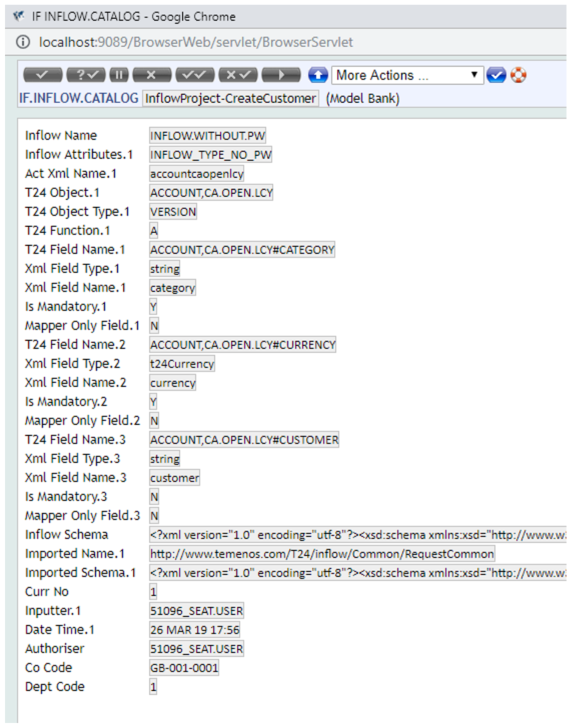

Below is illustrated an inflow record in table IF.INFLOW.CATALOG, when function I is not used.
