Setting up Transact Prerequisite Applications

You need to set up two Transact applications before you run the Archiving Service.

Creating the Archive Record

For each file that you intend to archive, you need to create an entry in the ARCHIVE application.

Fields

• ARC.FILENAME

  This field contains the names of all the $ARC files which will be created when archiving is done.

• ROUTINE

  Specify the Transact core routine name here. This field holds the routine that actually performs the archival process for IF.EVENTS.INTERFACE.TABLE. The routine IF.GENERIC.ARCHIVE that is mentioned in the sample data record is available as part of the core and the same can be used for the Archival process.

• GENERIC.METHOD

  Set it to No as Integration Framework uses its own archival method.

  Generic archiving is usually handled by a routine called ARC.GENERIC, which is a core Transact routine. This routine archives records based on the date field in the audit fields. This cannot be used, since the Interface table does not contain audit fields.
• FIELD.TO.CHECK

  This field is used when the DL product is installed and the default record holds CREATION.DATE as the field name.

  You need to configure the PURGE.DATE or RETENTION.PERIOD fields based on the requirement.

  You might want to configure the DL product to archive the IF.EVENTS.INTERFACE.TABLE record as soon as it is processed. We recommend deleting the record.

Updating ARC.GENERIC.REQUEST

Follow the steps below to update ARC.GENERIC.REQUEST.

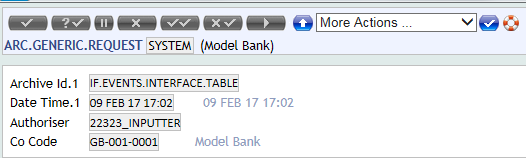

1. The ARC.GENERIC.REQUEST application has only one record with SYSTEM as the ID. Use the ARCHIVE.ID field to specify a valid ARCHIVE record ID. Note that this is a multi-value field because more than one file may be archived.



2. To initiate the archiving process, verify the record in ARC.GENERIC.REQUEST.
