Creating an Event Designer Project

You need to create the Integration Framework project and specify the most important connection parameters.

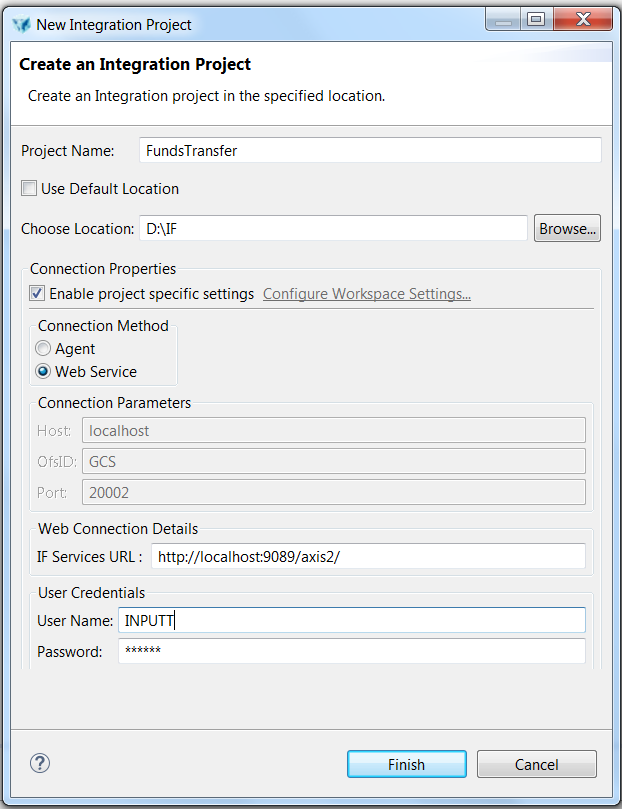

Follow the steps below to create an Event Designer project.

1. In the Event Designer top navigation menu, go to File >New > Project. A wizard opens.
2. Expand T24 Integration Studio, select T24 Integration Project and click Next. A new page opens.
3. Specify the name of the project and select Enable project specific settings.
4. Specify Web Service as the connection method.

   Only the Web Service mode of connection is supported.

5. Provide the connection parameters for connecting to Transact with the Web Service interface.

   To be able to use the Web Service option, pack the following components as an Apache Axis2™ web archive and then deploy them in a supported application server such as JBoss, WebLogic or WebSphere.

   • t24-IF_IntegrationLandscapeService-tafj-jws.aar
   • t24-IF_IntegrationFlowService-tafj-jws.aar
   • t24-EB_CatalogService-tafj-jws.aar

   These .aar files are available as part of Transact upgrade or update pack under the extensions folder. For more information about deploying a component in a J2EE application server, see the topic Deploying Component Service that is in Temenos online user guides.

6. Provide the Integration Framework service URL. The format of Integration Framework service is http://host_name/jar_name.
7. Specify the user credentials for connecting to Transact.



8. Click Finish.

For more information about deploying a component in a J2EE application, see Deploying Component Service.
