Introduction

The Delivery module uses the SWIFT Delivery Carrier and SWIFT Formatting modules to generate MT messages. For the MT messages which must be translated to ISO20022, the bank must use a different Delivery Carrier. The SWIFTXML Delivery Carrier has been released for this purpose.

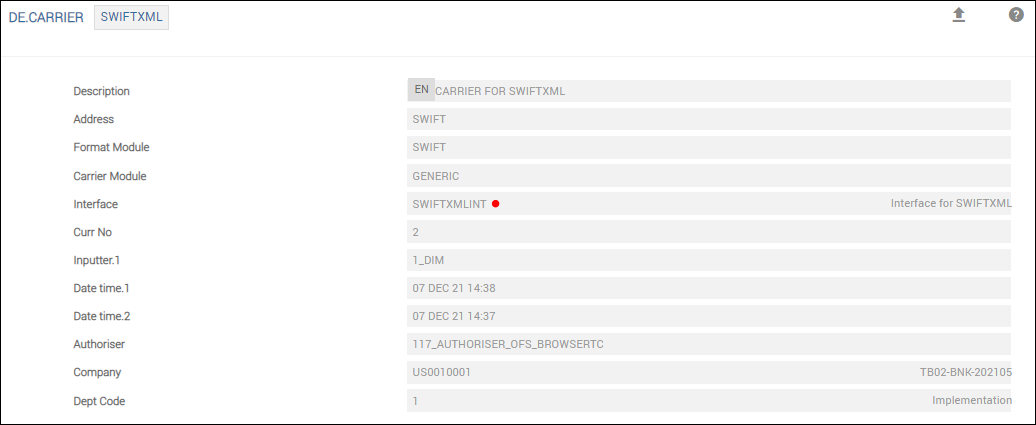

The setup of the SWIFTXML DE.CARRIER indicates:

• The Format Module is SWIFT.

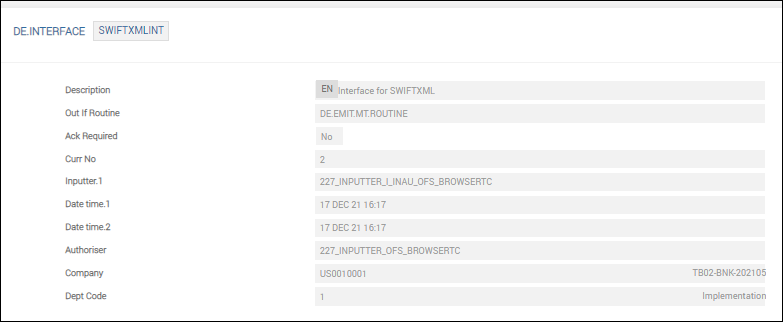

• A dedicated DE.INTERFACE is assigned to this Delivery Carrier (referred by the Interface field in DE.CARRIER) which emits messages through the Integration Framework and generates messages in the Temenos Extended MT format (the message includes the MT message along with the main details of the delivery header).

• The Ack Required field is set to No in the DE.INTERFACE application.

• The DE.PRODUCT application decides the delivery preferences for the delivery messages. The default setup for the MT messages is to generate them using the SWIFT Delivery Carrier ( the Carrier Address No field in DE.PRODUCT is set to SWIFT.1).  Implementations must change this setup to refer the SWIFTXML Delivery Carrier addresses when they want the MT messages to be translated to ISO20022 CBPR+ standards.

For each DE.CARRIER which has the Format Module field set to SWIFT, the bank must run its dedicated service – the naming convention is <<DE.CARRIER>.OUT.

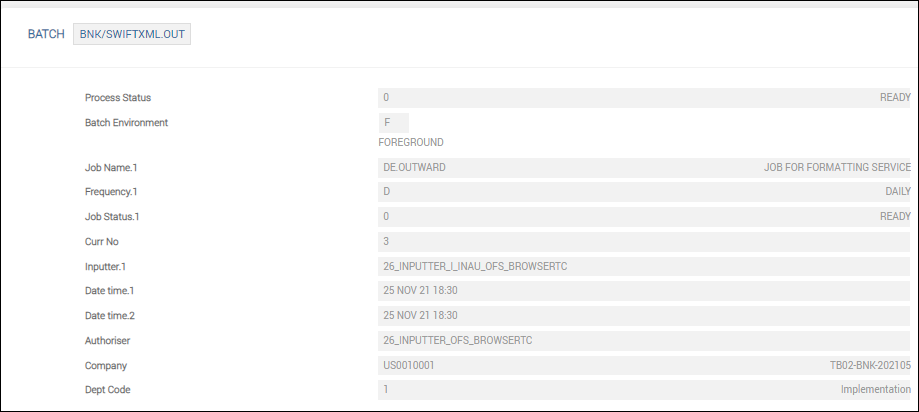

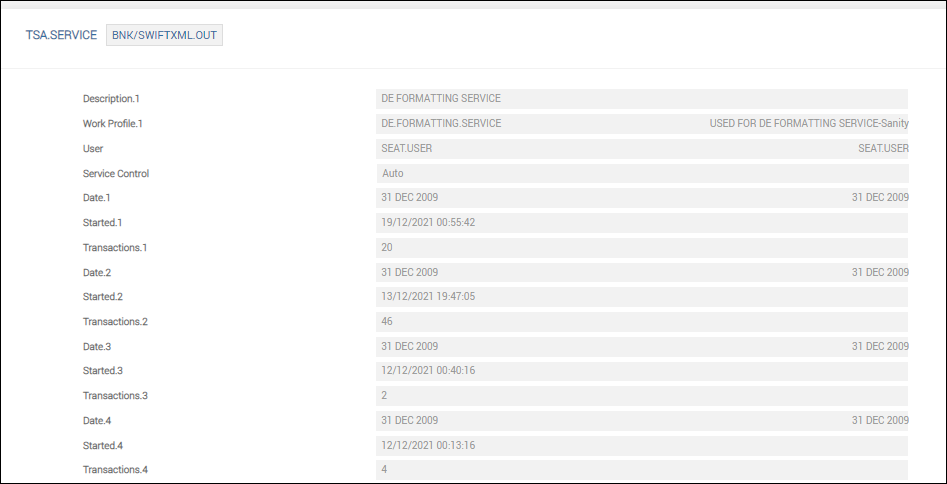

The bank must run the SWIFTXML.OUT and INTEGRATION.SERVICE services to generate the messages in the extended MT format.

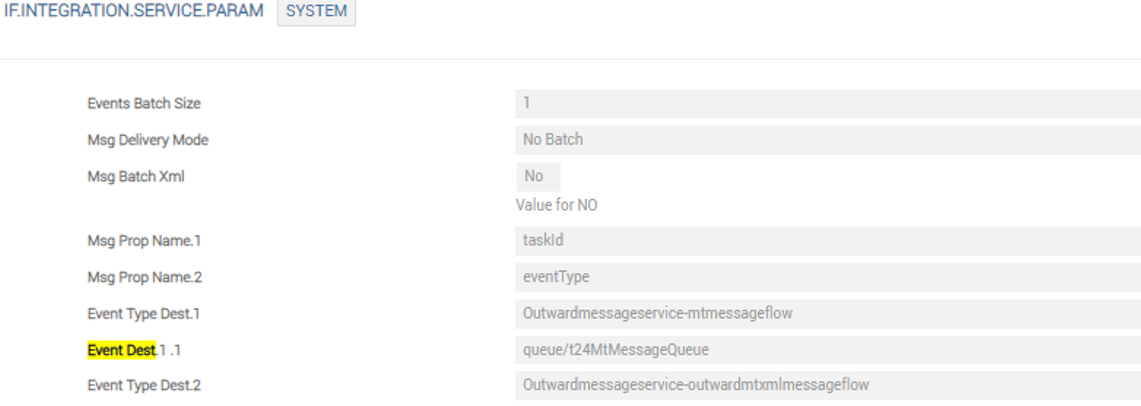

The integration queue where the SWIFTXMLINT DE.INTERFACE emits the extended MT message to the Delivery Translation layer must be defined in the IF.INTEGRATION.SERVICE.PARAM application:

• Event type destination: Outwardmessageservice-mtmessageflow
• Event destination: queue/t24MtMessageQueue

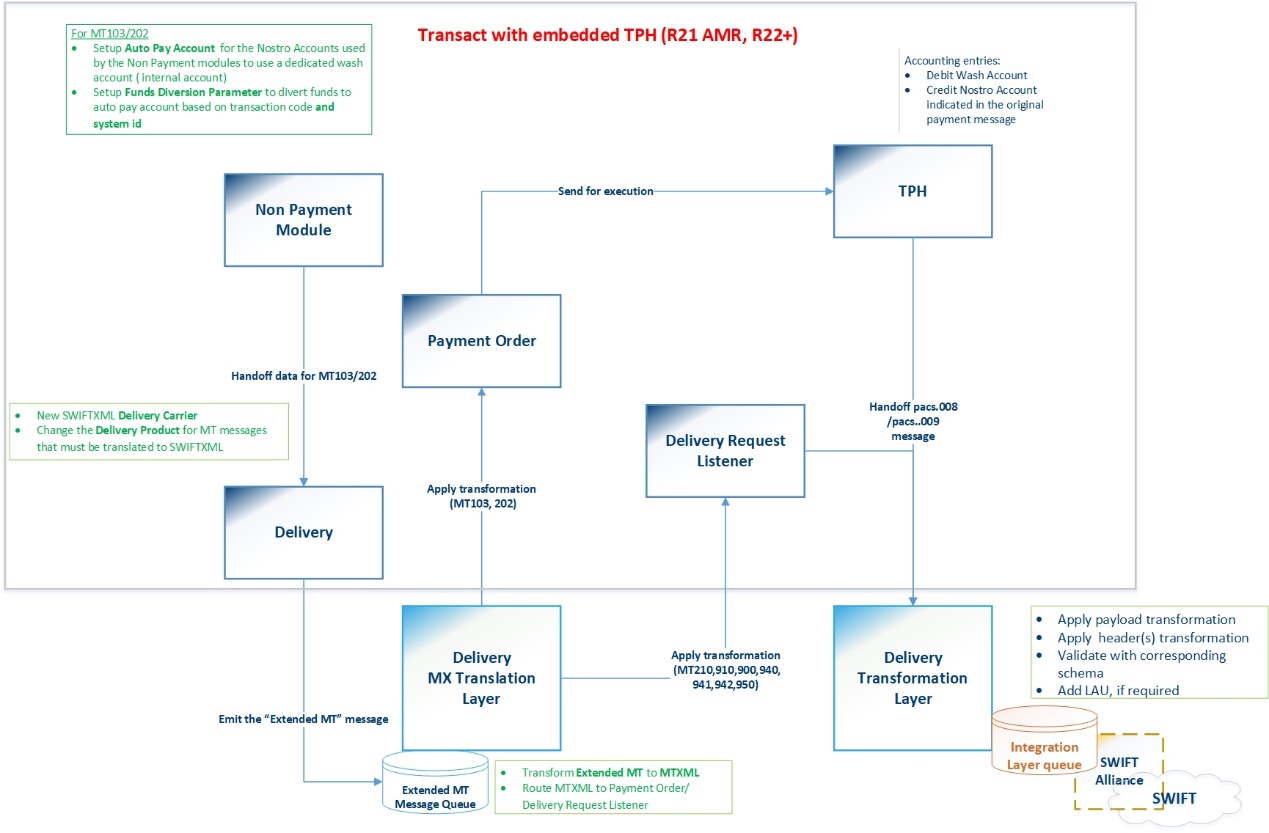

The name of the Delivery MX Translation component is DEMXTR_MTMXOutward-0.0.1-SNAPSHOT.war, which must be deployed in the Temenos\jboss\standalone\deployments path. The technical characteristics for the Delivery MX Translation processing are defined in the DEMXTR_MTMXOutward property file. For example, the queue mechanism connectivity, ip, max connections and number of concurrent consumers.

The Delivery MX Translation layer processes the extended MT messages based on the setup in the DEMXTR_MTMXOutward_QueueConfig property file. The file describes the various queues through which the messages are moved during processing and the routing rules based on which the Delivery MX Translation layer determines the processing rule and the processing characteristics.

The configurations defined in this file are described below:

• RouteChannel attribute – Indicates the internal processing of the message is done using queues (ActiveMq) or folders. The values are ACTIVEMQ or FILESYSTEM; however, FILESYSTEM is used for Temenos internal purposes.
• DEMXTRHandoffQueue attribute – Defines the queue where the MT messages generated by the business applications are emitted through the Delivery module in the extended MT format. Delivery MX Translation picks the messages from this queue and starts the processing, applying the DEMXTR-MTXML.xslt to transform the message into MTXML format.

• MtXmlTransPostQueue attribute – Indicates the queue where DEMXTR places the message if the transformation into MTXML format is successful. This message is evaluated using the routing rules to decide the target processing.

• transformationFailQueue attribute – Indicates the queue where DEMXTR places the message in the Extended MT format, if the transformation to MTXML format fails.

• DefaultQueue attribute – Indicates the queue where DEMXTR places the MTXML format, if no routing rule is matched and no processing rule is found.
• T24DeliveryQueue attribute – Identifies the queue where DEMXTR sends the messages to the target application in the target application format (the Delivery Request Listener application installed on the same platform with TPH). The messages are processed using XMLOFS OFS.SOURCE.

• extTransFailQueue attribute – Specifies the queue where DEMXTR places the message if transformation to the target application format fails. The message is in MTXML format.

• DLQError attribute – Specifies the folder where DEMXTR places the message if the queues become unavailable during processing.

The routing rules which are used to determine the processing rules are defined in the following manner:

MessageType-ServiceIdentifier-Application-SenderBic-SourceCarrier=Channel

The ‘*’ can be used as a wildcard character to indicate any value. For example, considering the following setup:

• 900-*-*-*-SWIFTXML=ROUTECBPR
• 910-*-*-*-SWIFTXML=ROUTECBPR
• 210-*-*-*-SWIFTXML=ROUTECBPR
• 103-*-*-*-*=103ROUTE
• 202-*-*-*-*=202ROUTE

According to this setup, the MT210, 900, 910 messages are processed based on the characteristics defined for the ROUTECBPR channel, irrespective of the service identifier, application generating them, sender BIC or source carrier.

The processing characteristics for the target channel are defined as <Channel>>-attributeName. The following attributes are supported:

• SystemId attribute — Identifies the target module to which the message is routed.
• Carrier attribute — Specifies the carrier which is to be used if the message is sent to the Delivery module.
• Xslt attribute — Specifies the name of the XSLT that is applied to the MTXML message before sending the message to the target module.
• Company attribute — Specifies the company to which the message is re-routed (in an implementation which involves Temenos Transact and standalone TPH, the companies in Temenos Transact could be different from those defined in Standalone  TPH). If this is blank, the target company for the ISO20022 message is the same as the source company of the MT message.
• POProduct — Used for MT103/202 routing and indicates the Payment Order product.

For example, the following setup indicates the processing attributes for the ROUTECBRP channel:

• ROUTECBPR-SystemId=DE
• ROUTECBPR-Carrier=CBPRPLUS
• ROUTECBPR-Xslt=transformToDeliveryRequest.xslt
• ROUTECBPR-Company=

According to this setup, the Delivery MX Translation module applies the transformToDeliveryRequest.xslt transformation to the MTXML message processed through the ROUTECBPR channel, set the target Delivery Carrier to CBPRPLUS and then routes the message to the Delivery module (identified by SystemId attribute).
