Configuring Message Framework

Consuming different payments is the prime responsibility of the message framework. Since there is always a need to consume or send payments from or to the external system by different means, the framework provides an option to configure input or output folders or queues.

The Queue config properties given below can be used to configure folders or queues and its names.

#Configuration of the physical input folder or queue for each clearing
CTIInputFolder=BulkCTIInput
CTEInputQueue=TPH. BULK .CTI. QUEUE
DDIInputFolder=BulkCTInput
DDTInputQueue= TPH. BULK .DDI. QUEUE

Apart from configuring the Input folders or queues, other folders or queues like Backup, Error and so on can be configured.

Given below is the configuration of the folder names:

#Configuration of the folder names
FailedMsgFolder = FailedMsgFolder
ErrorFolder = ErrorFolder
TransformRejectFolder = TransformRejectFolder
BackUpFolder = BackUpFolder
Transformedxml = Transformedxml
SignatureInputFolder=SignatureInput|

For instant payments processing to facilitate synchronous message acceptance and processing, REST API endpoints are provided.

The user can configure the API request and reply queue in the QueueConfigInst.properties of the instant message flow.

To configure API:

 #Request Queue for API
APIEWINSTReqQueue~APIEWINSTReqaue!
APIUKFPSReqQueue—APIUKFPSReqQueue
APIHCTINSTReqQueue~APIHCTINSTReqaqueue
APIEBAINSTReqQueue—APIEBAINSTReqqueue
APICTIINSTReqQueue—APICTIINSTReqQueue
APISAINSTReqQueueAPISAINSTReqqueue

#Response Queue for API
APIReplyqueue—APIReplyqueue

The configuration below is required in the outward message flow (QueueConfigInstOut.properties) for receiving the confirmation response message.

#Routing channel for Final Output File
#FILESYSTEM
#ACTIVEMQ
#API
RoutingChannel-UKFPS=API

The user can configure the time interval to wait for the response as below:

Response Queue for API
APIReplyQueue=APIReplyQueue

#Time that API request waits for response
requestTimeout=30000

If the correlation message is not required, then the user can switch off using the configuration below. In this case, the reply queue does not wait for the confirmation message.

The configuration to switch off the correlation message is as follows:

UKFPS-correlationRequired=TRUE
UKFPS-corrAPI-ClassName=

If the Correlation ID is not configured, the framework creates a unique ID for correlation of the message.

Any specific correlation ID can be assigned by using the configuration below:

#API Related Configuration
UKFPS-correlationRequired=true
UKFPS-corrAPI-ClassName=com.temenos.PP.PPINST_InstantInward_DebulkXmlMessage
UKFPS-corrAPI-MethodName = generateCorrelateionID

Payment processing can accept payments from different physical sources but process it in the same way without having any new configuration in the payment system, by assigning logical queues to different input folders or queues.

Logical queue name refers to the ID of the PP.MSG.ACCEPTANCE.PARAM table which is the first entry point into processing messages. The configuration below gives the flexibility to assign the same logical queue to different physical folders or queues:

#Mapping of Physical Folder to Logical Queue
BulkCTIInput = TPHCTI
BulkDDIInput = TPHDDI
STEP2Input = STEP2
RPSCHQInput = RPSCHQ
RPSSCLInput = RPSSCL

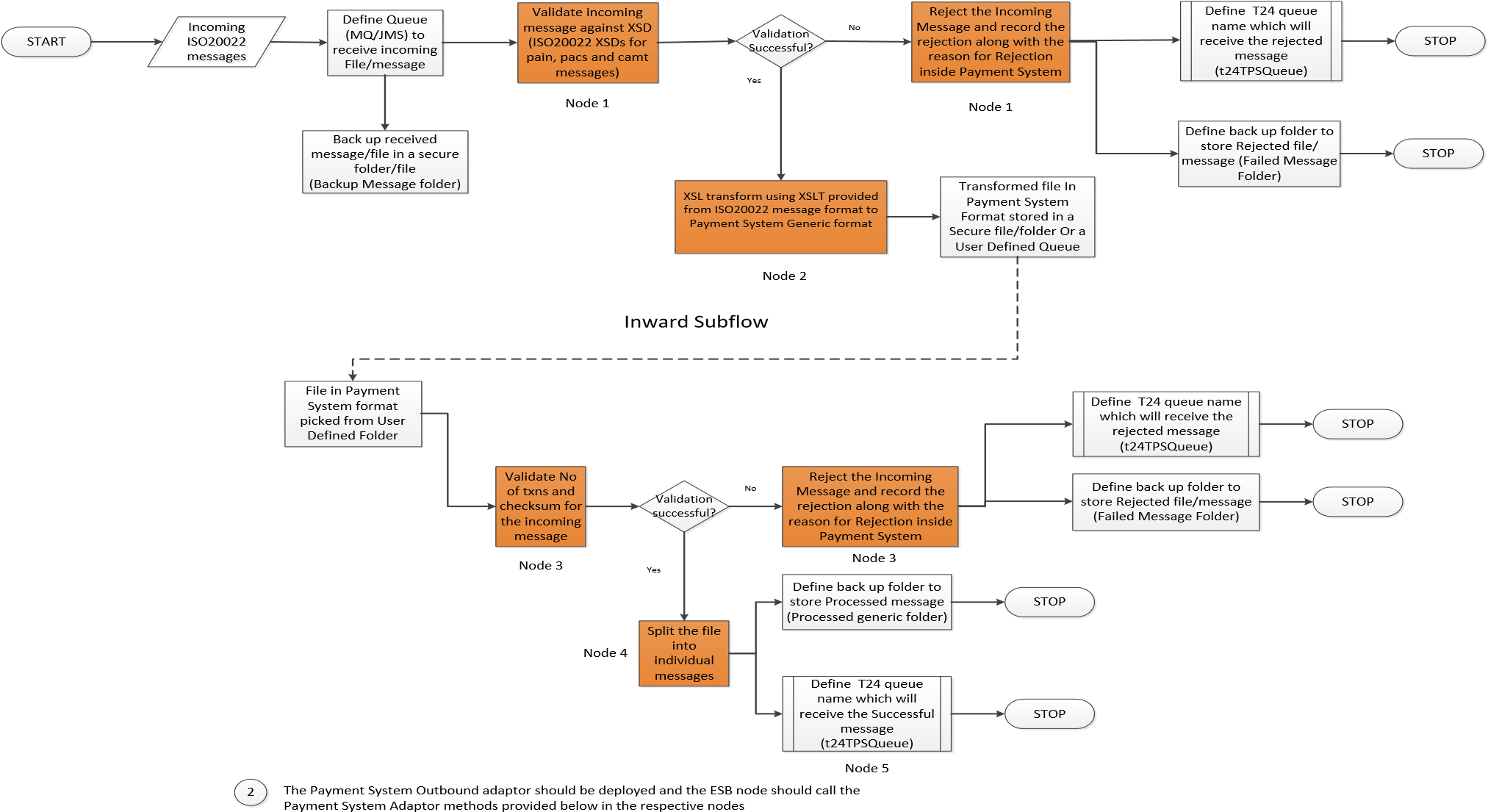

The system provides the capability to perform an end-to-end integrity check for all incoming messages. Configurable APIs can be used to extract the signature from the incoming message and verify the signature based on the Compliance and Key store.

Given below are the two levels of integrity check:

• Integrity check on the incoming payments
• Integrity check after the transformed payment is received in the TPH layer

The table given below lists the configurable Integrity Properties text file in middleware:

The user can turn the integrity check on or off by setting Foldername-IntegrityRequired or QueueNameIntegrityRequired as True or False in the configurable properties text file for message integrity as given below:

POInstInput-IntegEityRequirsd=FALSE
POInstInput-Compliance=
POInstInput-APIName=
POInstInput-Intermediatecheck=FALSE
PONonInst-IntegrityRequirsd=FALSE
PONonInst-Compliance=
PONonInst Input-APIName=
PONonInst-Intermediatecheck=FALSE
TPH. PO. BULK. INST-IntegrityRequired=FALSE TPH. PO. BULK.INST-Compliance=
TPH.PO.BULK.INST-APIName=
TPH.PO.BULK.INST-IntermediateCheck=FALSE
TPH.PO.BULK.NP.INST-TIntegrityRequired=FALSE
TPH.PO.BULK.NP. INST-Compliance=
TPH.PO.BULK.NP.INST-APIName=
TPH.PO.BULK.NP.INST-IntexmediateCheck=FALSE

By default, XSD validation is performed for all XML messages and can be switched off using the configuration below:

#Configuration to enable or disable XSDVALIDATION
UKFPS-XSDVALIDATION = FALSE
SAINST-XSDVALIDATION = FALSE

1. Use the below API hook to add validations to non-XML files.

#configure here for non XML Validation
BECS-ClassName = com.temenos.PP.PP_InwardXML_DebulkXmlMessage
BECS-MethodName = validateBECSFile
BACS-ClassName = com.temenos.PP.PP_InwardXML_DebulkXmlMessage
BACS-MethodName = validateBACSFile

2. Configure the validation errors description as below.

#Functional Validation Error codes
BACS-10=29-Sum of all Debit Transaction Amount does not match with the Total Debit
BACS-07=30-Sum of all Credit Transaction Amount does not match with the Total Credit
BACS-08=31-Sum of all Debit Transaction does not match with the Total Debit Count
BACS-09=32-Sum of all Credit Transaction does not match with the Total Credit Count
BACS-06=03-Nunber of transactions at the Payment Information level is invalid
BACS-11=33-Debit contra is mandatory for given debit transactions in the file
BACS-12=34- Credit contra is mandatory for given credit transactions in the file
BECS-01=35-Technically invalid file

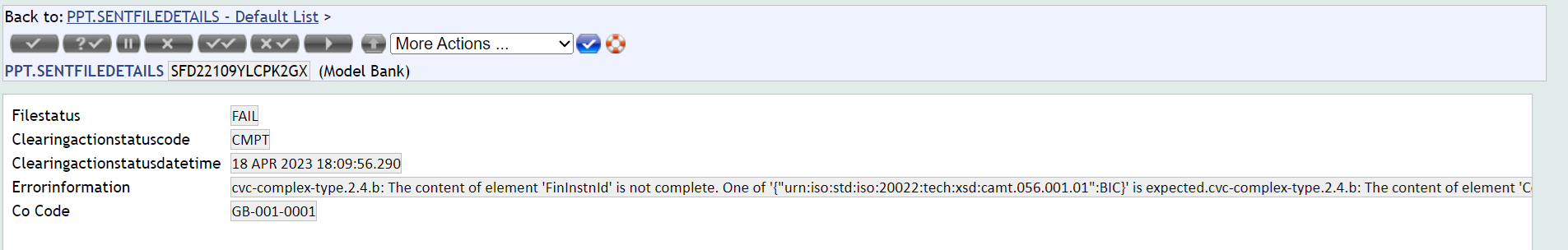

If the file is rejected due to an XSD validation error, the error information is logged in Received File Details.

By default, the check sum and control sum validations are performed by the system for all messages and it can be switched off using the configuration below. This validation also includes validating batch customer feeder payments for valid currency. If the bulk of payment initiation file is a batch, all the transaction currencies should be the same, else the bulk is rejected.

#Configure here for the Default Checksum Validation
LNKCLR-DefaultCheckSumVal = Yes

By using the following TPH understandable neutral formats, any type of message can be mapped by the framework into system for processing.

• Customer to Bank (C2B)
• Interbank (B2B)

This section explains the handling of exceptions in Inward and Outward message flow.

Exception Handling in Inward Message Flow

Any technical failure in the Message Acceptance layer may result in a partial file mapping into the payment system. Such failures require the reprocessing of the whole file again.

This can be handled by configuring exception queues or folders and pushing the failed messages. The payment system take cares of the duplicate check, settlement entry creation and auto cancelling the payments if already mapped.

Configuration for exception cases are given below:

#Configure here for the exception cases
ExceptionClearingInputFolder=ExceptionClearingInput
ExceptionClearingInputQueue= TPH. EXCEPTION. CLEARING. QUEUE
ExceptionInitiationInputFolder=ExceptionInitiationInput
ExceptionInitiationInputQueue= TPH. EXCEPTION. INITIATION
ExceptionInitiationInput = TPHCTI##EXCEPTION
ExceptionClearingInput = STEP2##EXCEPTION

Exception Handling in Outward Message Flow

Any technical failure at the queue level or at the connection level may result in the missing of the transactions. In this scenario, the file is not completed and the outward file did not reach the destination queue or clearing interface.

For example, if there are ten transactions in a file and two are lost due to technical failure, then the file is incomplete with eight transactions. The output file is not sent to the clearing.

Technical failure happens for single transactions as well. When ISO messages (SWIFT CBPR or Target2 and so on) are emitted to the clearing or SWIFT interface through the Delivery module, there is a possibility of technical failure in the Temenos Payments layer as well as in the Delivery layer.

To handle the above exceptions, the Temenos Payments framework provides an option to regenerate the failed messages successfully using a fast path enquiry given below:

User Menu > Payments > Payment Hub > Payment Exceptions > Regenerate Payment and Messages.

Users can search for the record using the file reference of the transactions. This enquiry displays the record and allows the user to regenerate the lost messages again using the regenerate button.

Authorisation is not required for this enquiry change.

When two transactions are lost from the same file, the user can regenerate both messages using a single action using the fast path enquiry. This option is available only for manual action and investigation. It is highly recommended only if a user is sure that the message is lost and cannot be retrieved to proceed with the final file generation.

Once the file is regenerated, the records are removed from the fast path enquiry and the outward file gets generated and sent to the clearing or SWIFT interface. The original message is sent again without any change to the payload and headers (business metadata). Also, the possible duplicate indicator is not added to the business application header.

The system provides a capability to perform partial message integrity check for all incoming messages., Configure EB.PARTIAL.SIGN.PARAM to specify the fields to be used from the incoming message details to form the signature. The signature generated is stored and validated before booking.

The ID is combination of originating source and incoming message type configured in Transact EB.PARTIAL.SIGN.PARAM table which extracts the field values from the table and forms the signature to be validated.

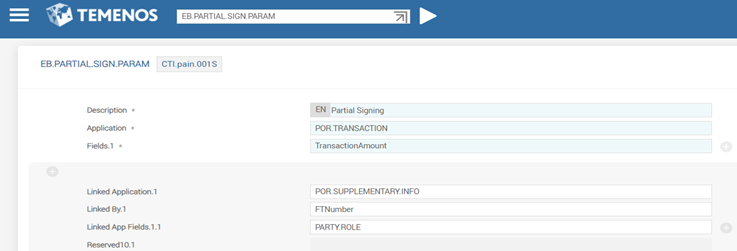

The compliance can be configured in EB.SEC.KEY.CONFIGURATION table for signature formation.

If the incoming message fails due to signature mismatch before posting, it is routed to repair to check the validity.

From the Repair page, the user can do one of the following:

• Either accept the error and continue the payment processing after verification
• Cancel
• Return
• Reject the payment

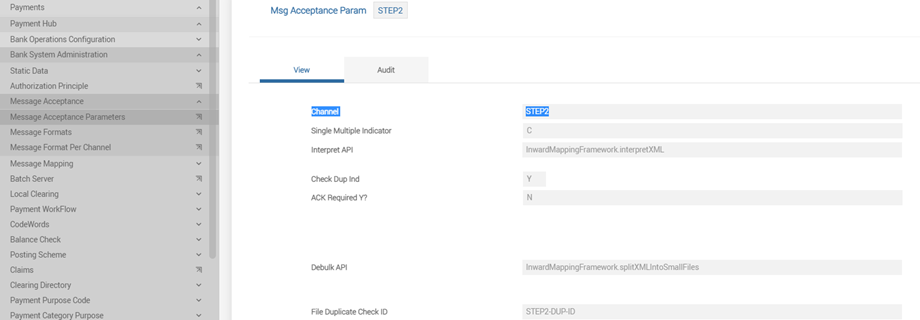

The source and channel of the customer feeder messages and the clearing messages are determined based on the configuration in PP.MSG.ACCEPTANCE.PARAM. By defining different source and channels, consecutive payment processing characteristics can be defined.

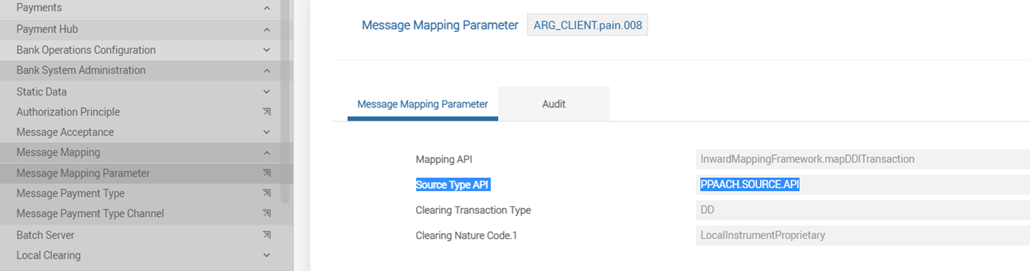

The source can also be changed by using Source Type API inPP.MSG.ACCEPTANCE.PARAM.

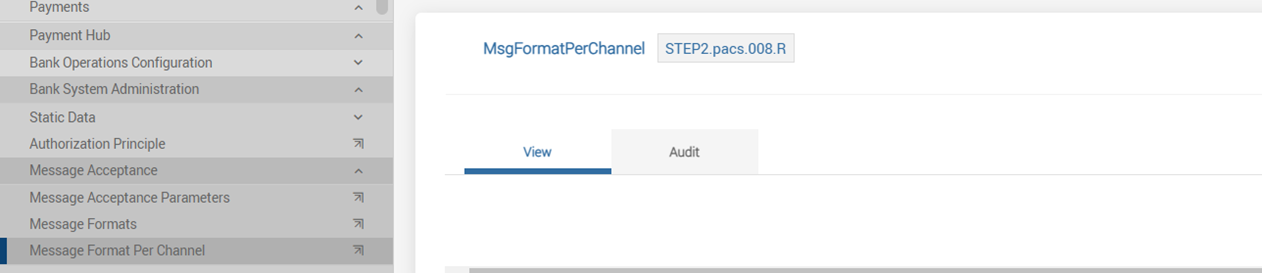

The message format which is allowed for any particular channel can be defined by using a MsgFormatPerChannel configuration. This configuration allows only valid message formats to be accepted per channel.

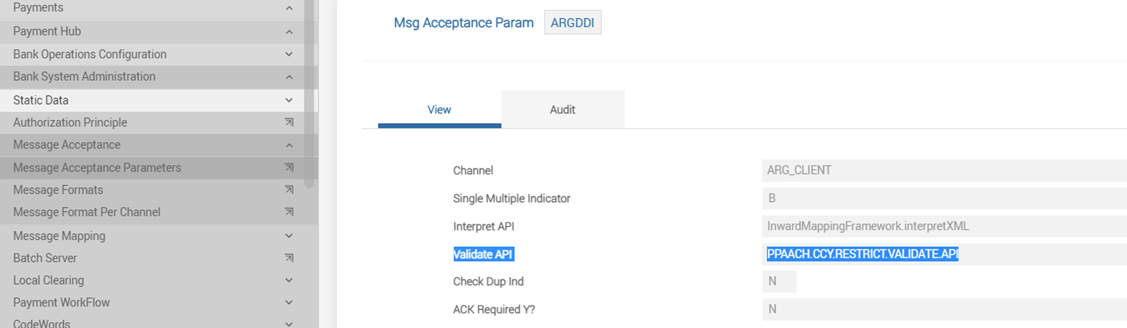

Apart from validation at the middleware, any further validation can be performed using Validate API in PP.MSG.ACCEPTANCE.PARAM of TPH.

When the incoming message does not have sufficient or basic information to map to the payment system, the Acceptance Enrich API in PP.MSG.ACCEPTANCE.PARAM can be used to enrich the message.

If a return incoming payment is not coming without reference of the original underlying payment, then the same can be matched using different criteria and enriched.

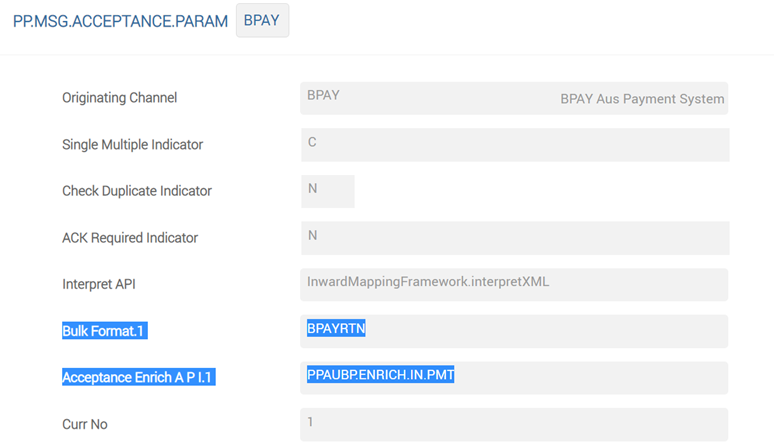

Enrichment can be performed on the received message using Acceptance Enrich API which is per message format

The user can configure the required clearing transaction type for a specific message from a specific source. The Clearing Transaction Type field determines the flow in TPH that this message has to go through.

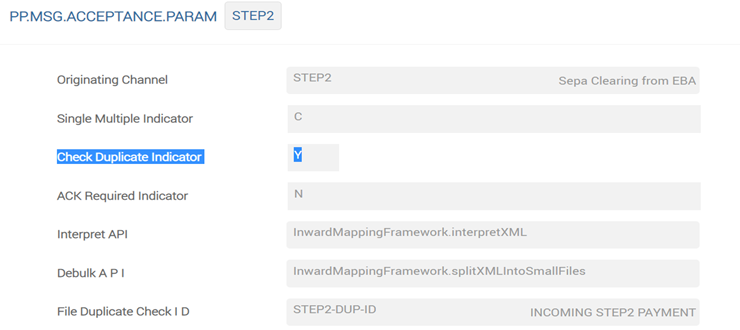

File level duplicate can be enabled using Check Duplicate Indictor in PP.MSG.ACCEPTANCE.PARAM based on the following values:

• File Header Reference
• File Message Format
• File Sending Institution
• Originating source

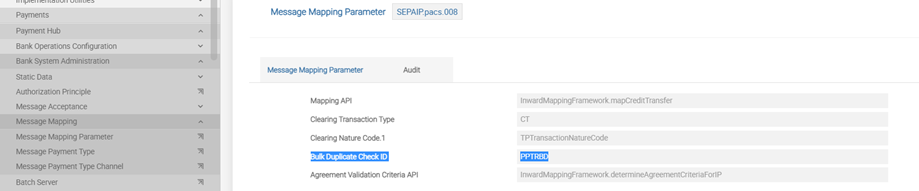

Bulk level duplicate can be enabled by configuring EB DUPLICATE TYPE Id in PP.MSGMAPPINGPARAMETER

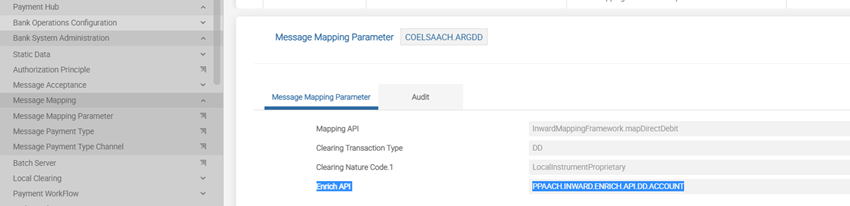

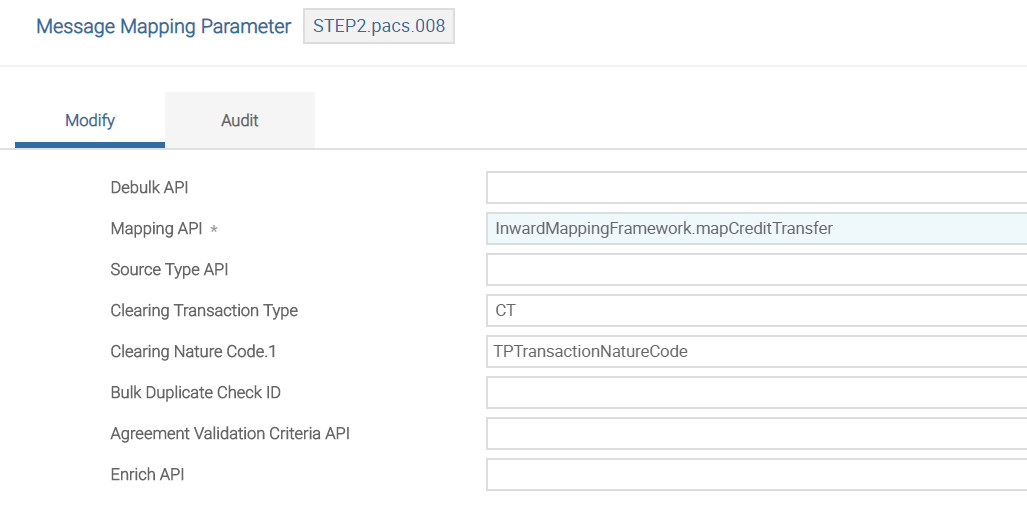

Enrichment can be performed on the mapped message using Enrich API in PP.MSGMAPPINGPARAMETER. The payment object to be mapped to the payment system tables can be enriched using this API.

The PP.IN.CHANNELS table enables definition of folders where the incoming non-XML file has to be placed.

The Data field in the Batch record of INWARD.MAPPING service refers to the ID of the records in PP.IN.CHANNELS table.

When no value is set in the Batch record of INWARD.MAPPING, Batch is the default value considered. Hence, a record with Batch ID should be available in PP.IN.CHANNELS in this case.

The table below describes the fields used:

INWARD.MAPPING

To run the INWARD.MAPPING service,

1. Receive the file
2. The service is internally read in PP.MSG.ACCEPTANCE.PARAM. Invoke Validate API and Debulk API to validate and debulk the message.
3. Once validation and debulk is successful, the system maps the message to internal POR tables (TPH neutral payment object)

PP.IN.ENTRY.PARAM

The PP.IN.ENTRY.PARAM table is used to map non-XML messages to TPH. The fields in this table are described below:

Field Name	Description
ID	Indicates the ID which is made up of two components de-limited by a “-“QueueName-TypeOfMessage Queue Name - ID of the record in PP.MSG.ACCEPTANCEPARAM TypeOfMessage - Value returned from DebulkAPI in the position TypeOfMessage SEPA-DDINIT FPS-CTINCOMING
Description	Indicates the description of the record
Field Delimiter	Indicates the delimiter which separates the values in the incoming de-bulked message. It is not mandatory to have a delimiter, as the incoming de-bulked message can be a fixed-length string. In such a case, Field Position and Field Length are used. F1|F2b|F2c In this case ‘|’ is the FMDelimitter The chosen or configured Field Delimiter must be a character which cannot be used in the message itself.
VM Delimiter	Indicates the field to specify the delimiter between multiple values, if the incoming de-bulked message has a field which contains those multiple values. It is not a mandatory field as the incoming de-bulked message can be a fixed-length string. In such a case,  Field Position and Field Length are used. F1~F2|F2b|F2c~F3 In this case ‘|’ is the FMDelimitter In this case ‘~’ is the VMDelimitter The chosen or configured VMDelimiter must be a character which cannot be used in the message itself.
SM Delimiter	Indicates the filed holding the delimiter between the sub-values, if the incoming de-bulked message has a field, which contains multi values and sub values. It is not a mandatory field as the incoming de-bulked message can be a fixed-length string. In such a case, Field Position and Field Length are used. F1~F2:F201:F202:F203|F2b|F2c~F3 In this case ‘|’ is the FMDelimitter In this case ‘~’ is the VMDelimitter In this case “:” is the SMDelimitter The chosen or configured SMDelimiter must be a character which cannot be used in the message itself.
Field Name	Indicates the name of the field in TPH neutral format that needs to be mapped from the input message string.
Field Position	Indicates the starting position of the field’s value Use this only if it is a fixed-length message. This is associated to the Field Name field. Hence, this specifies the starting position for the field specified in Field Name field. 1001USD100 FieldName : InstdAmtCcy FieldPosition : 5
Field Length	Indicates the length of the field’s value from the starting position mentioned in Field Position field. Use this only if it is a fixed-length message. The Field Name, Field Position and Field Length fields are associated.  1001USD100 FieldName : InstdAmtCcy FieldPosition : 5 FieldLength : 3
Val Routine	Indicates the API hook triggered to enrich data. This field is associated to Field Name, Field Position and Field Length. Hence, this API can only enrich data for the field specified in the Field Name to which this API is linked to. Signature: Only one input or output variable can be supplied. This holds the current fields’s value. Post enriching, in the same variable, send the enriched value for the field. enrichNonXMLData(ioFieldContent)
Mandatory	Indicates the field configured as Mandatory (value = ‘Y’) and if the content of the corresponding field is empty or blank, then an error is returned by the API. The transaction is not mapped but it can be viewed in a GUI received file or messages with an error status.
Constant	Indicates the constant value that can be supplied to a field instead of extracting the value from the incoming message. If this field has a value specified, the system does not refer the Field Position, Field Length and Val Routine fields. Value defined here takes the precedence over the others.

The framework is Enterprise Service Bus (ESB) agnostic and can be used in any ESB by calling the appropriate java API’s. Source agnostic implies it can receive messages from any type of source irrespective of its technical nature.

In case of using other ESB, few steps need to be followed to configure and establish connection with Transact. The flow below and Java API’s provide the details for building the flow.

The Inward Java APIs to be used as part of the message flow is given below:

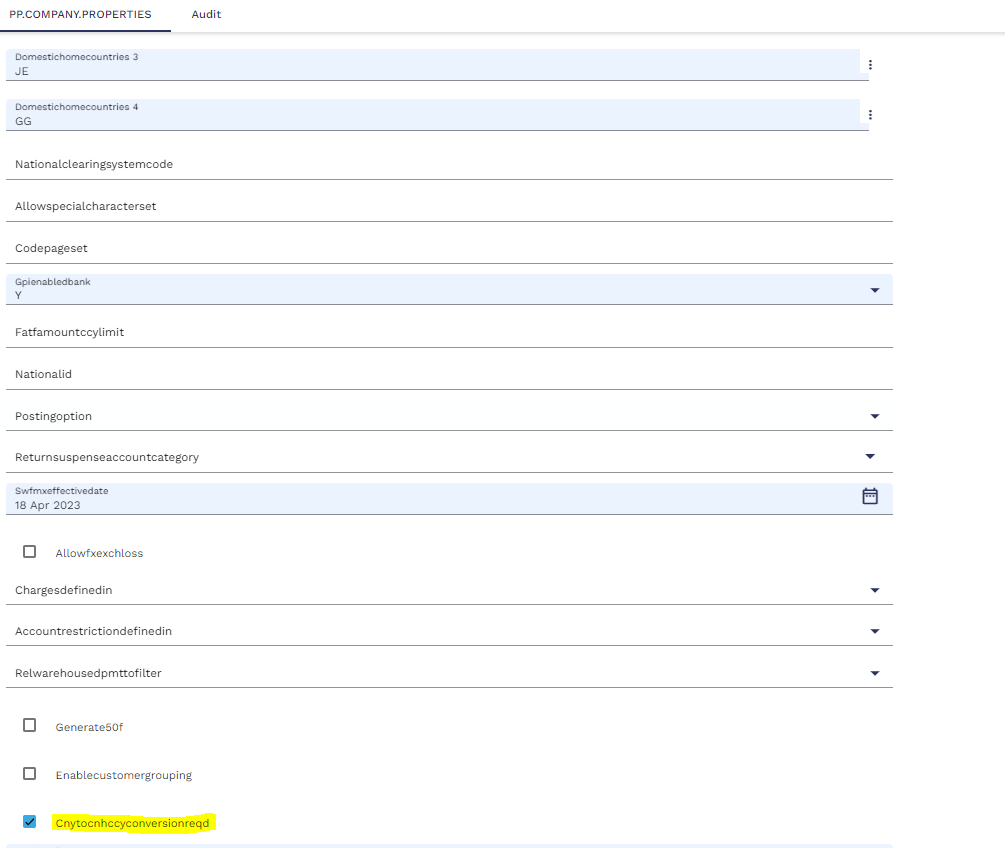

In PP.COMPANY.PROPERTIES table, check the CNY TO CNH Conversion Required field if the processing company wants to convert CNY to CNH currency for incoming messages (CBPR+ and Clearing).

Using the Max Trx/ Bulk, Max Bulks/ File and Max Files/ Cycle fields, the user can configure the number of files in a clearing cycle, the number of bulks in a file and the number of transactions in a bulk for the outward file generation.

Based on the clearing frequency, the transactions are grouped and references are created which is later bulked in the middleware. Using the physical file name, the name of the file can be configured.

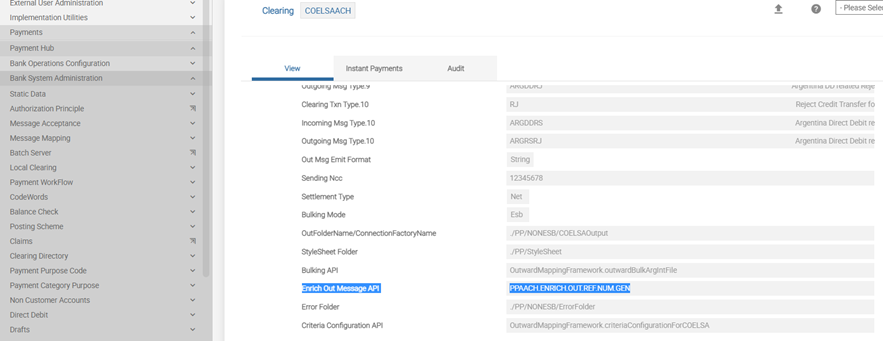

By using Enrich out Message API in PP.CLEARING, the emitted events with TPH details can be enriched as per the requirement.

Every message flow has a configurable Properties text file which can be used to configure different properties of the framework in the middleware.

The Properties text file is available in ESBProjects > PP > ESB_SOURCE > PP_ESBOutward > <Flow name> > ESBUtility > Schema path.

The table given below lists the configurable properties in outward middleware:

#Configuration to disable XSDVALIDATION clearing wise
UKFPS-XSDVALIDATION = FALSE
SAINST-XSDVALIDATION = FALSE

When there is an error in the outward file due to XSD validation, the error is captured in the PPT.SENTFILEDETAILS application as shown in the screenshot below. This application stores the file-level XSD validation errors and PP.OUT.CT.TRANSACTION stores the bulk-level or transaction-level XSD validation errors.

The system provides a capability to perform an end-to-end integrity check for all outgoing messages. This check can be turned on or off using the following Message Integrity properties. Configurable API can be used to attach the signature to the outgoing message. This signature is generated based on the Compliance and Key store.

The two level of integrity checks are:

• Integrity check after receiving neutral format in camel layer
• Adding signature to target outward message

The table below lists the configurable integrity in the outward middleware:

EBAINST-IntegrityRequired=FALSE
EBAINST-Compliance=
EBAINST-APIName=

An API can be used to add the signature to the target message according to the compliance configured

T24-IntegrityRequired=FALSE
T24-Compliance=

The message after received into the camel layer from TPH, can be checked for integrity by enabling the configuration.

Sending different payments to an external system or Clearing is the prime responsibility of the outward framework. Since there is always a need to consume or send payments from or to external system by different means, the framework provides an option to configure input or output folders or queue.

Queue Properties file can be used to configure either folders or queues and its names.

RoutingChannel-BACS=FILESYSTEM-BACS
RoutingChannel -COELSAACH=QUEUE-COELSAACH
RoutingChannel -MASAV=FILESYSTEM-MASAV
RoutingChannel-SIC=FILESYSTEM-SIC
RoutingChannel -BECS=FILESYSTEM-BECS
RoutingChannel-BPAY=FILESYSTEM-BPAY

If the Routing Channel is configured as FILE SYSTEM, the generated message is routed to folder and if it is configured as QUEUE message it is routed to a Queue as configured below:

#Output folders to write the bulked files - Clearing wise
BACSCTOutput=BACSCTOutput
COELSACTOutput=COELSACTOutput

#Output queues to write the bulked files - Clearing wise
TPH. BECS.CT.OUT. QUEUE=TPH. BECS.CT. OUT. QUEUE
TPH. BACS.CT.OUT. QUEUE=TPH. BACS. CT.OUT.QUEUE
TPH.COELSA.CT OUT.QUEUE=TPH. COELSA.OUT .QUEUE

As an out-of-the-box solution, the inward framework is built to work using Apache Camel as the ESB. In case of using other ESBs, few steps needs to be followed to configure and establish connection with Transact.

The steps to implement Outward framework in any ESB other than Camel are as follows:

1. Transact adapters for various ESBs are available at Temenos. This should be obtained and deployed. This adapter polls IF (Integration Framework) events. If no adapter is available for the ESB, queues can be used for consuming the IF events.
2. Message flow explained above needs to be amended, so that it is compatible with any ESB.

The Outward Java APIs to be used as part of the message flow is given below:
