Request Transfer AD Installation Guide
This document aims at explaining the installation procedures required to install and deploy the package contents for the outward extract of the EDPMSRequestTransferAD file.
The following are the pre-requisites for installing this package.
- Jdk 11.
- Temenos Transact area configured with the IF components.
General Considerations
The following general considerations are available for the EDPMSRequestTransferAD -1.0-SNAPSHOT.zip file.
- Extract the .zip file.
- In the start.cmd file, set the following details:
- JAVA_HOME variable: points to java jdk location. C:\java\jdk11\jre
- PROVIDER variable: contains the queue broker name. It accepts the following values: jboss, ibmmq, activemq, amazonmq, weblogic.
- PORT variable: can be any available port number to be used by the package.
- XSLPATH: path of the XSLT files.
- JAVA_HOME variable: points to java jdk location.
- If the above values are not set, then the following values will be defaulted:
- PROVIDER=jboss
- PORT=8080
- XSLPATH=%CD%\xsl\
- Copy the FileMergerUtility-1.0-SNAPSHOT.zip and rename to EDPMSRequestTransferAD-1.0-SNAPSHOT.zip.

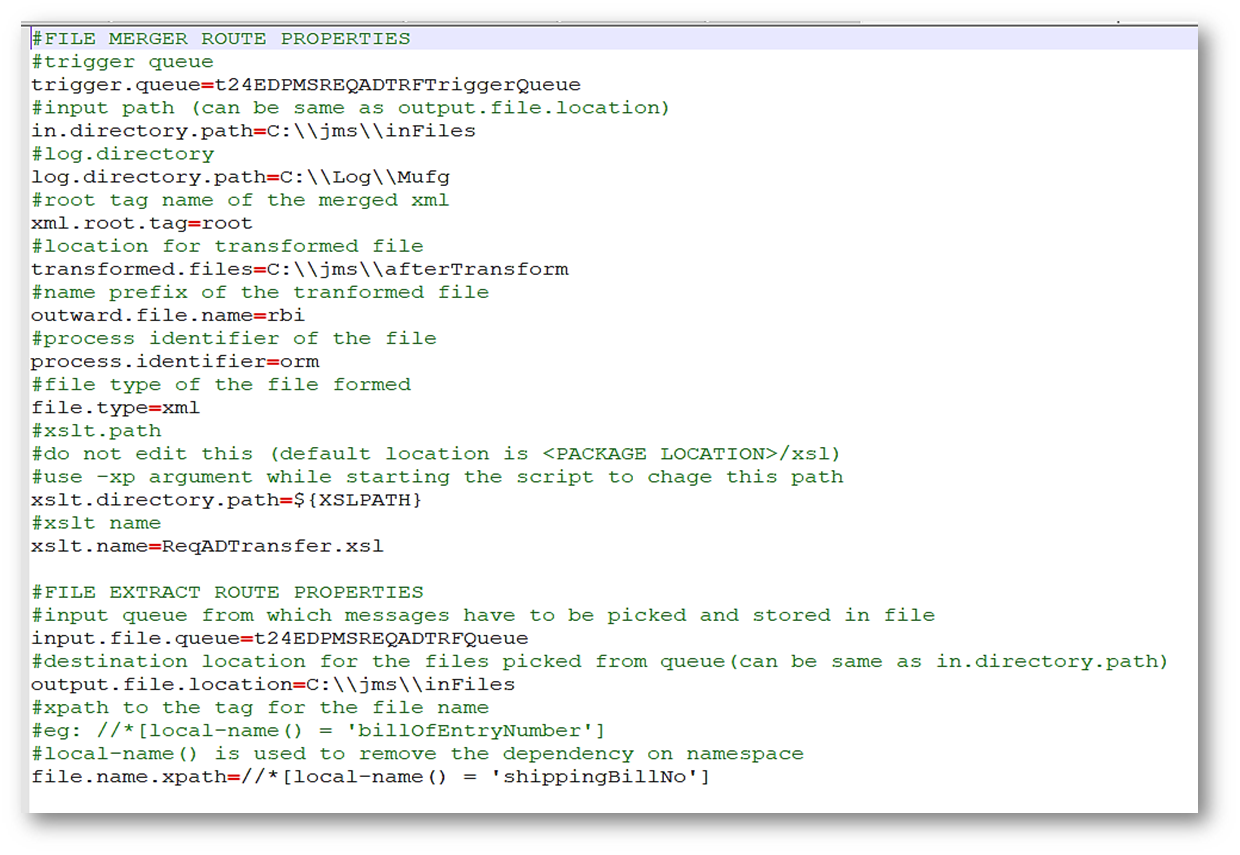

- After the renaming in the EDPMSRequestTransferAD package, the items below have to be modified in application.properties.
- log.directory.path.
- in.directory.path.
- transformed.files.
- output.file.location.
The output.file.location and in.directory.path should be the same. No changes should be done in xslt.directory.path.
- Open the respective application properties for the queue broker type and set the JNDI values. For example, if the queue broker is jboss, the user needs to open application-jboss.properties and set the values.
Contents of the Package
The RequestTransferAD components are:
- FileMergerUtility-1.0-SNAPSHOT.zip.
- 1_IF_EdpmsRequestAd_1_JAVA_1.0.jar.
Deployment Steps
The following steps are required for deploying the package file.
Events Package Deployment
Configure the environment variables as per below.

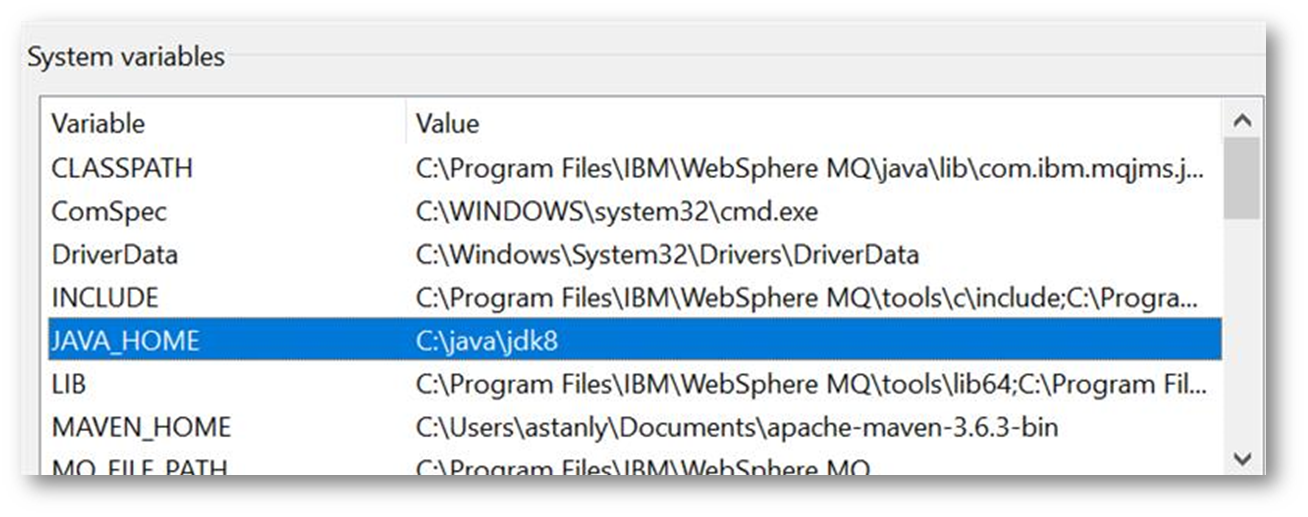

- Set JAVA_HOME as per the screenshot below.

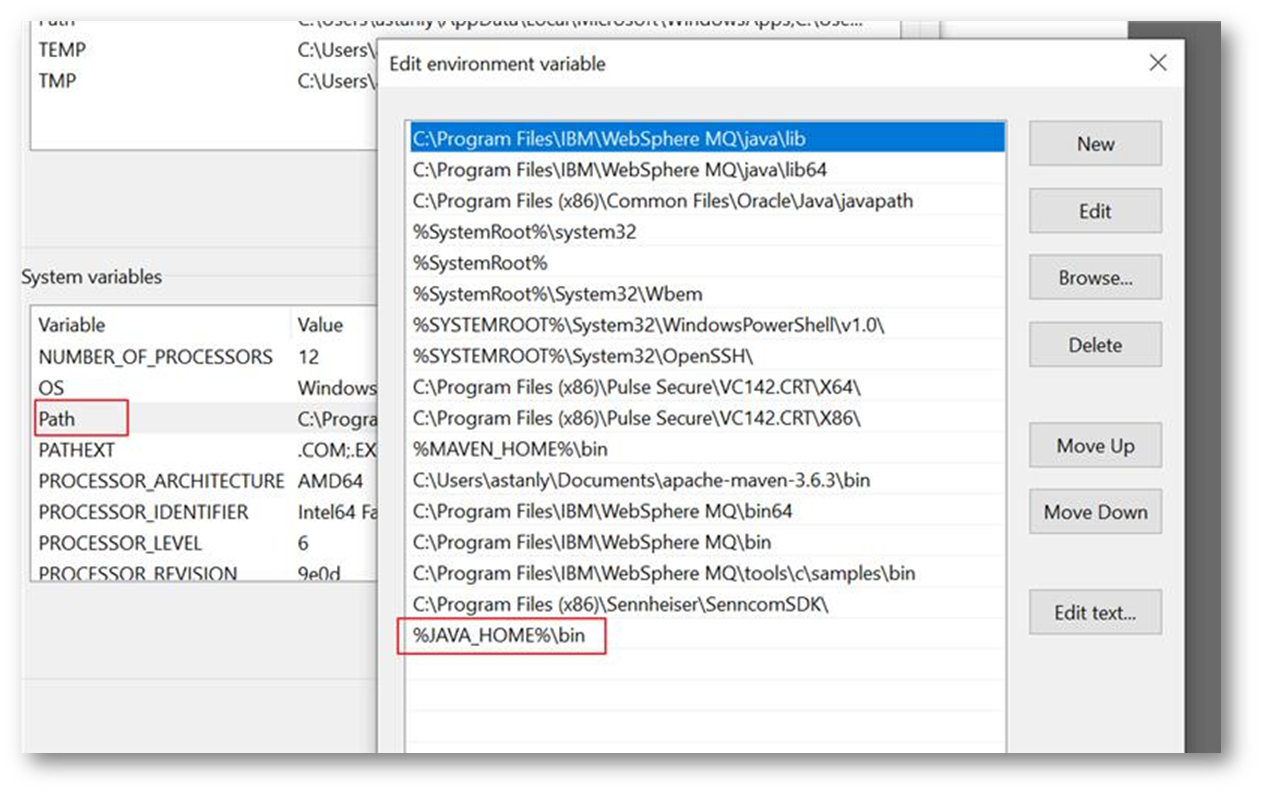

- Add the %JAVA_HOME%\bin in the path variable as per the screenshot below.

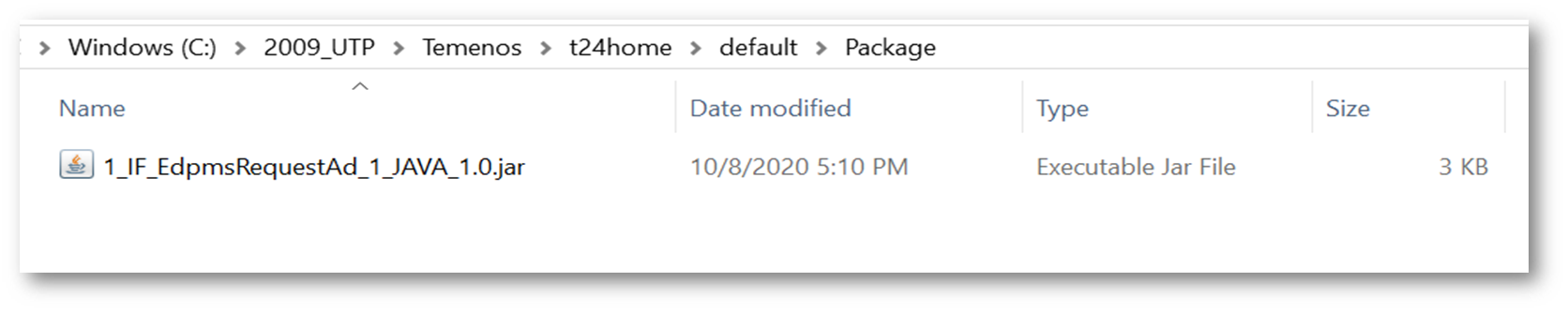

- Place the 1_IF_EdpmsRequestAd_1_JAVA_1.0.jar in the ..\Temenos\t24home\default\Package existing package folder.

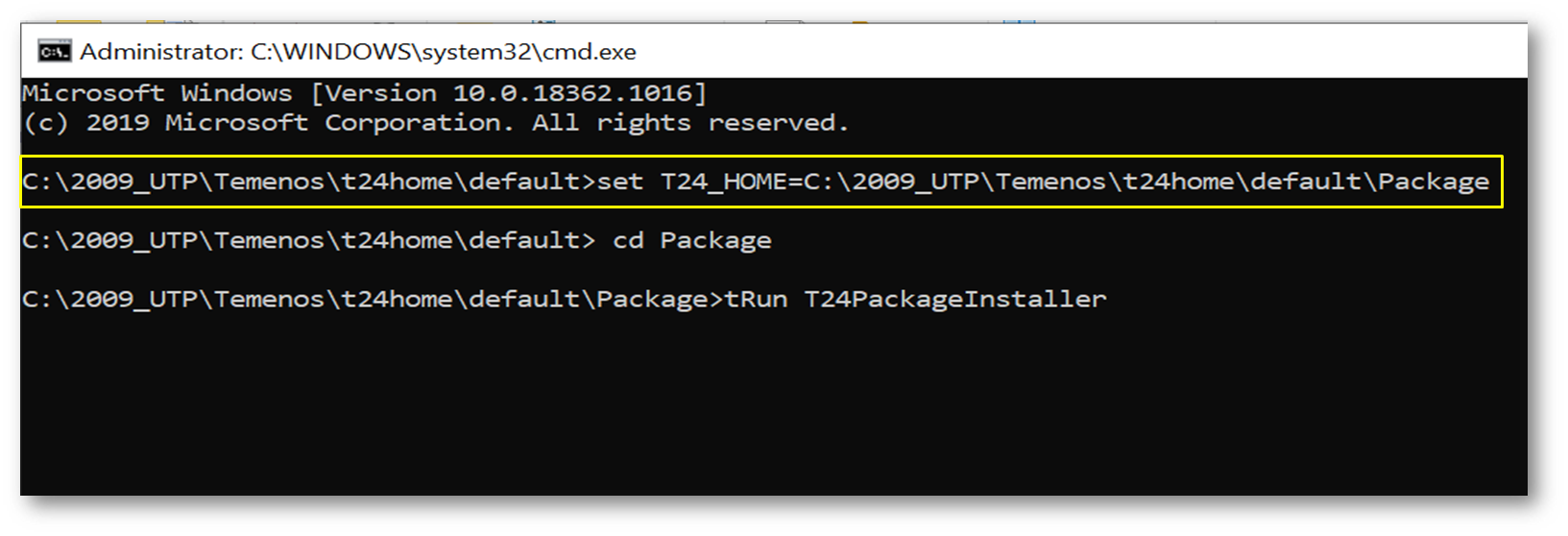

- Set the run directory as T24 Home.

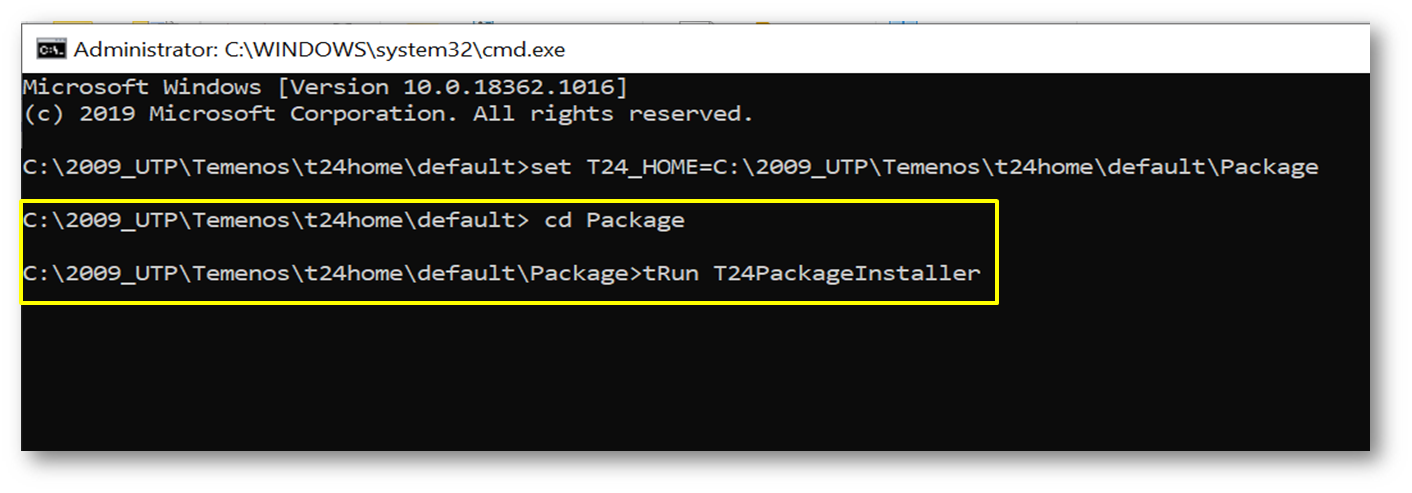

- Execute the tRun T24PackageInstaller command.

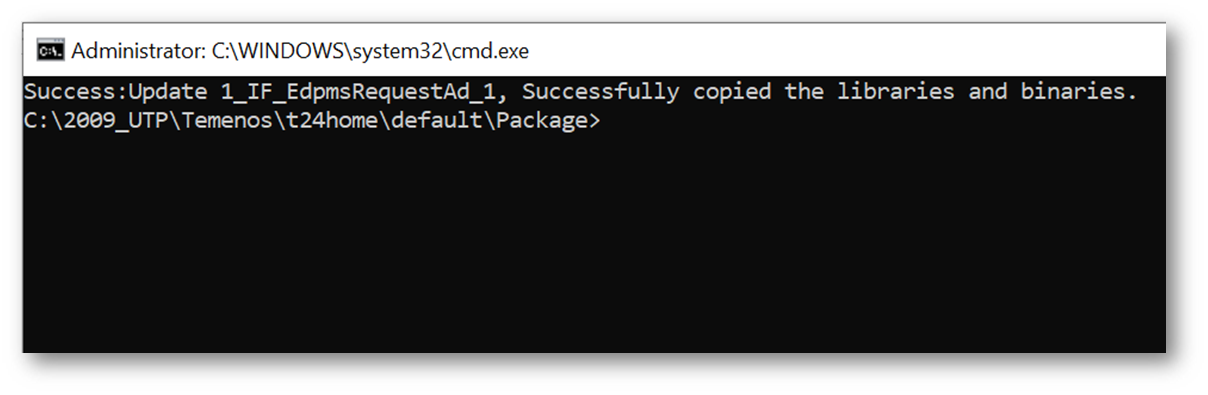

- The successful completion of the command will result in the message below.

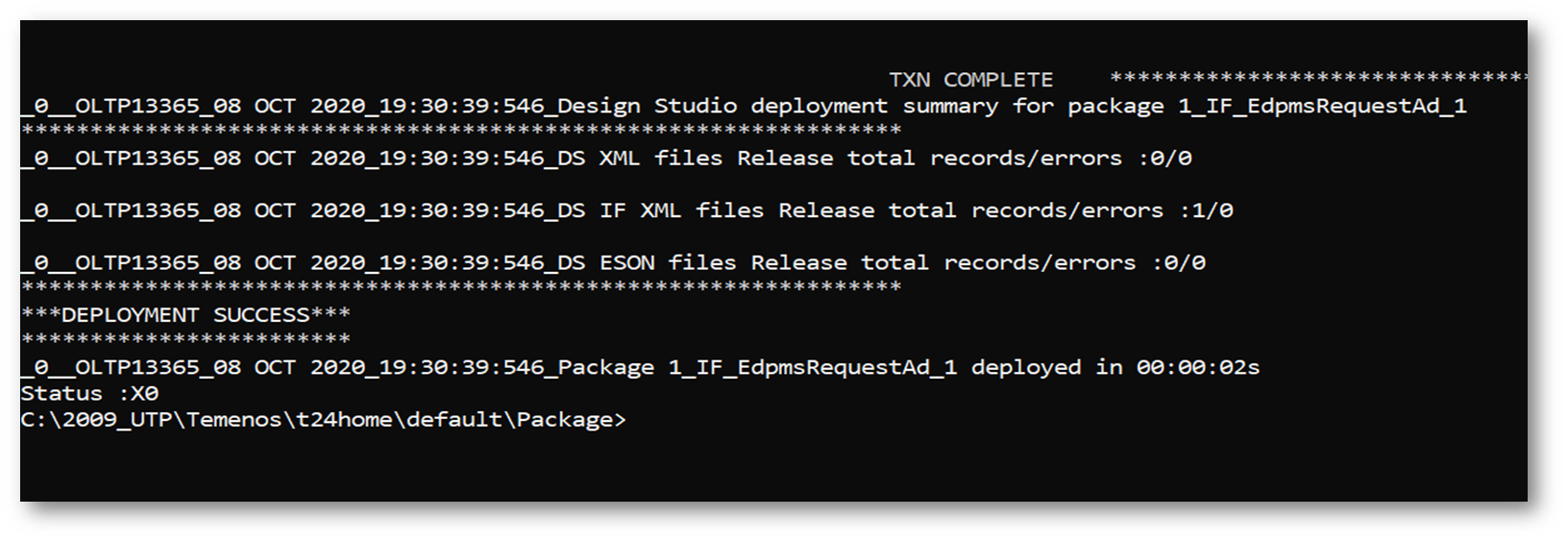

- Execute the tRun packageDataInstaller command.
Package Deployment

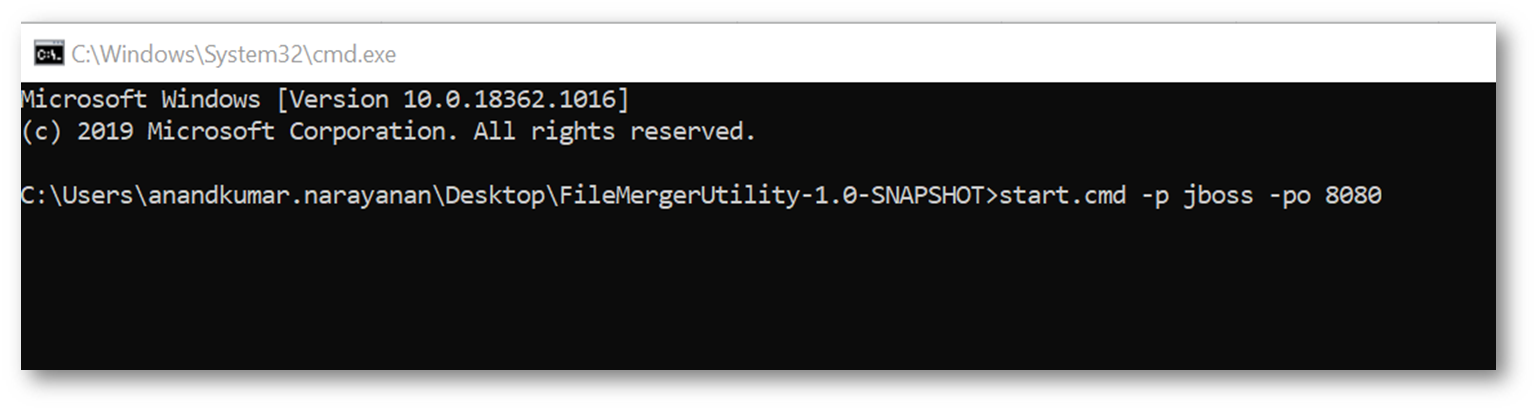

- Open a command window in the extracted package location, and execute the start.cmd command.
- Syntax:
start.cmd [ -p provider ] [ -po port ] [ -xp xslPath ]
Start.cmd –p jboss –po 8080 -xp [path]
…\package>start.cmd -p jboss -po 8080

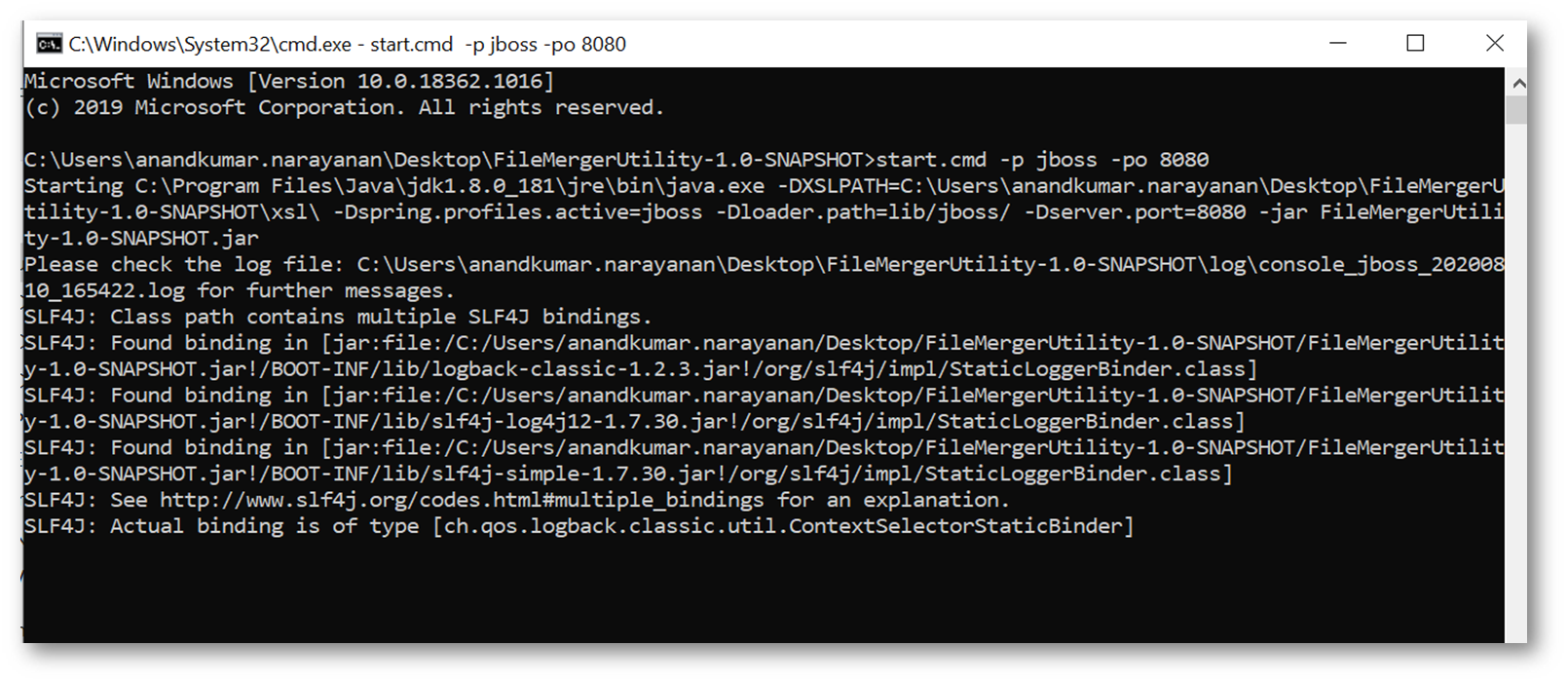

- The logs will generated in the log folder for monitoring purpose. …\package\log\ console_[providername]_[datetime].txt
Configuring the System

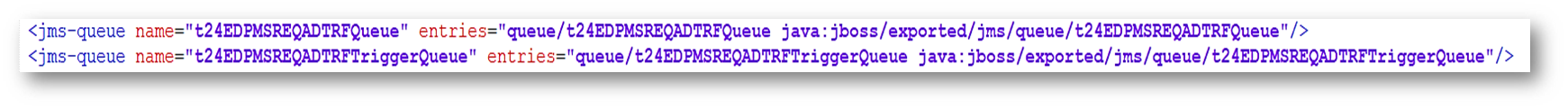

The queue below has to be configured in Temenos Transact in the path ...\jboss\standalone\configuration\standalone-utp.xml file as per the screenshot below.
