Ebrc File Message Processing Outgoing Installation Guide
This document aims at explaining the installation procedures required to install and deploy the package contents for the outward file message processing for INLMB - EBRC and IFSC data.
The following are the pre-requisites for installing this package.
- Jdk 11.
- Temenos Transact area configured with the IF components.
General Considerations
The following general considerations are available for the INLEND_EbrcFileMessageProcessingOutgoing.zip file.
- Extract the .zip file.
- For multiple types of files, take multiple copies of the extracted folder and run them as separate instances.
- In all the instances, keep the xslt for the specific file and remove all the other xslts.
- In the start.cmd file, set the following details.
- JAVA_HOME variable: points to java jdk location. C:\java\jdk11\jre
- PROVIDER variable: contains the queue broker name. It accepts the following values: jboss, ibmmq, activemq, amazonmq, weblogic.
- PORT variable: can be any available port number to be used by the package.
- XSLPATH: path of the XSLT files for the current instance/Filetype.
- JAVA_HOME variable: points to java jdk location.
- If the above values are not set, then the following values will be defaulted.
- PROVIDER=jboss
- PORT=8080
- XSLPATH=%CD%\xsl\
- In the root path of the extracted package, change the application.properties. The Xpath configuration for the files is given below.
- FileName - EBRC
file.name.xpath=//*[local-name() = ‘ebrcId’]
filter.name.xpath = //*[local-name() = 'ifsc']
- FileName - IFSC
file.name.xpath=//*[local-name() = ‘ifsccode’]
filter.name.xpath = //*[local-name() = 'ifsccode']
The output.file.location and in.directory.path should be the same. No changes should be done in the xslt.directory.path and xsd.directory.path. - FileName - EBRC

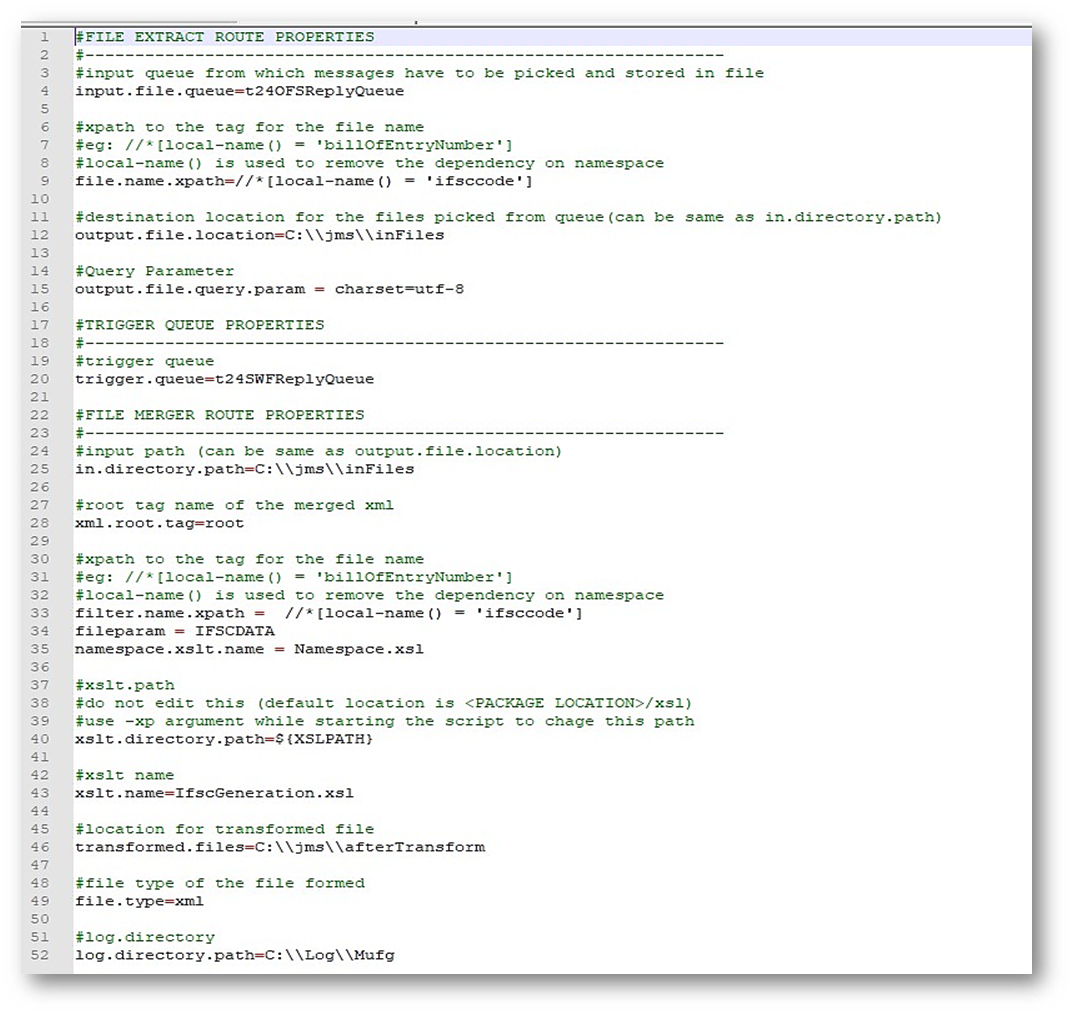

- Below is the sample configuration for a particular file type.
- Open the respective application properties for the queue broker type and set the JNDI values. For example, if the queue broker is jboss, the user needs to open application-jboss.properties and set the values.
Contents of the Package
The package contains the EBRCINMB_FileMessageProcessingOutgoing.zip file.
Steps for Deploying the Package File
The user needs to follow the deployment steps as per below.

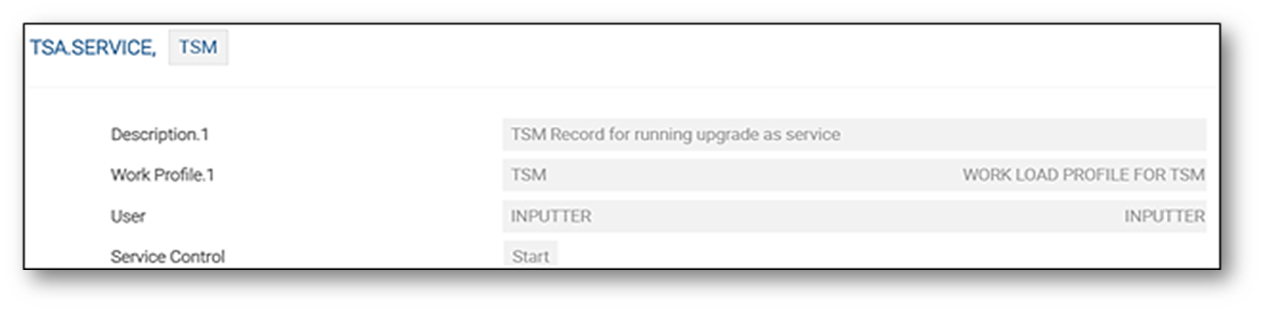

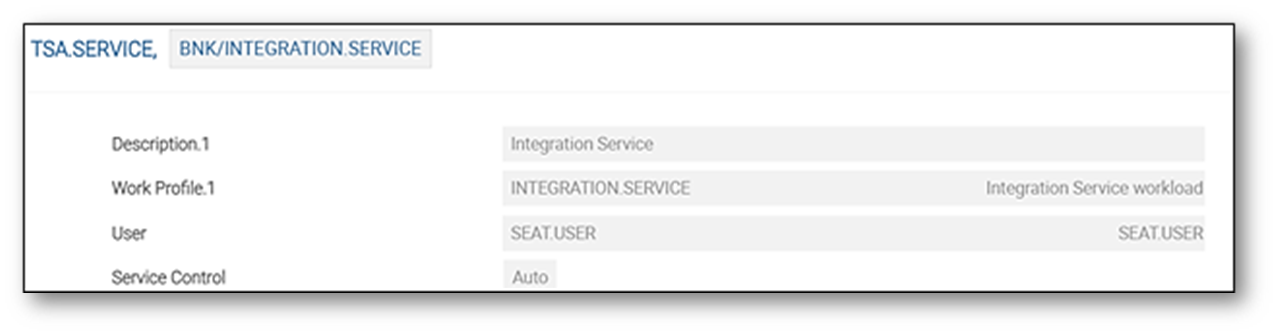

- Start the TSM and BNK/INTEGRATION.SERVICE services in Temenos Transact using the TSA.SERVICE application. It is advised to keep the BNK/INTEGRATION.SERVICE service in AUTO mode. Sample screenshots are given below.

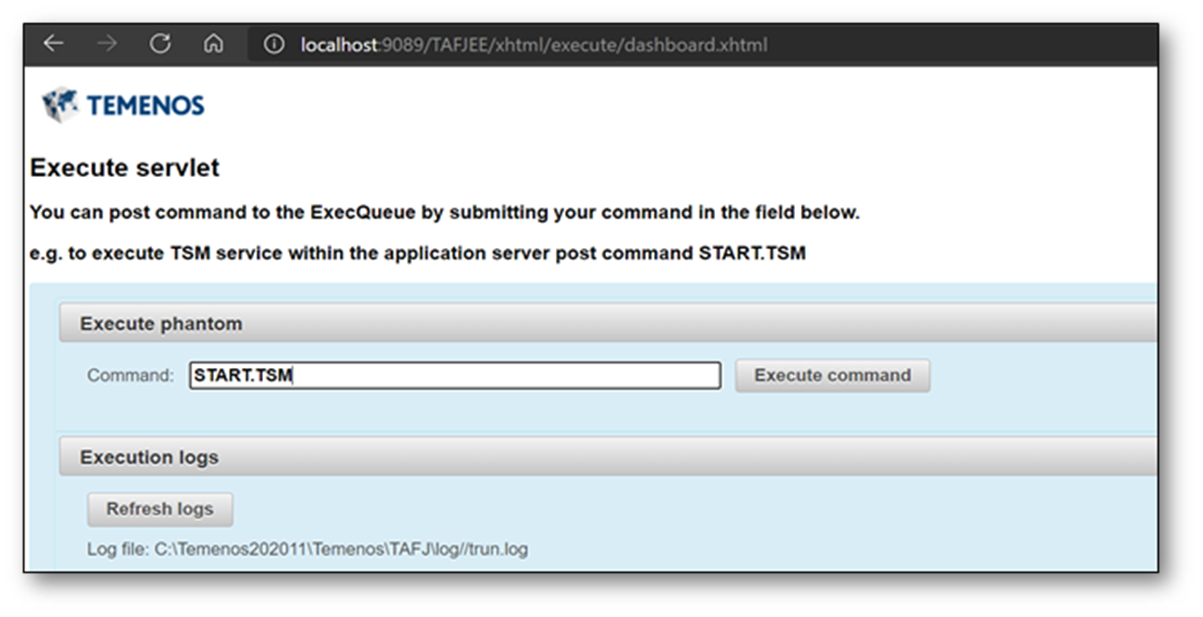

- The TSM needs to be started via TAFJEE (in case of TAFJ). Type START.TSM in the Command field and click on the Execute command button to start TSM. An example screenshot is given below.

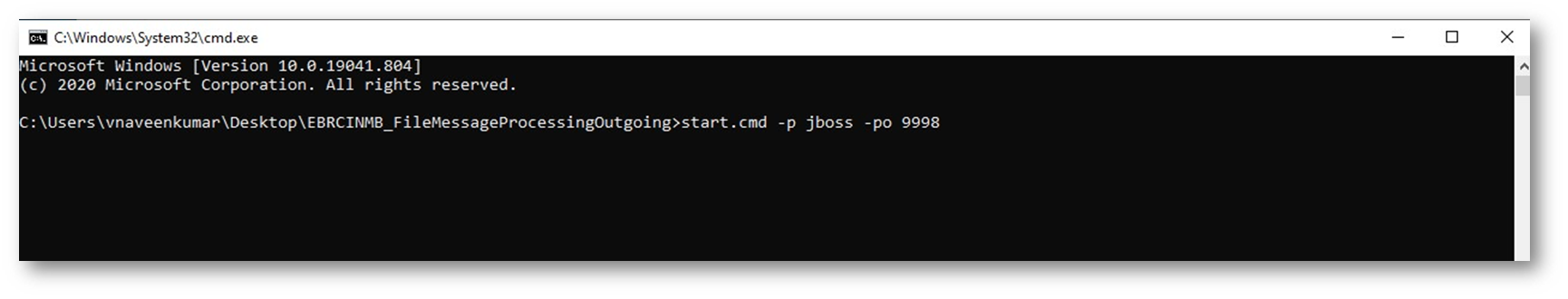

- Open a command window in the extracted package location, and execute the start.cmd command.
- Syntax:
start.cmd [ -p provider ] [ -po port ] [ -xp xslPath ]
Start.cmd –p jboss –po 8080 -xp [path]
…\package>start.cmd -p jboss -po 8080

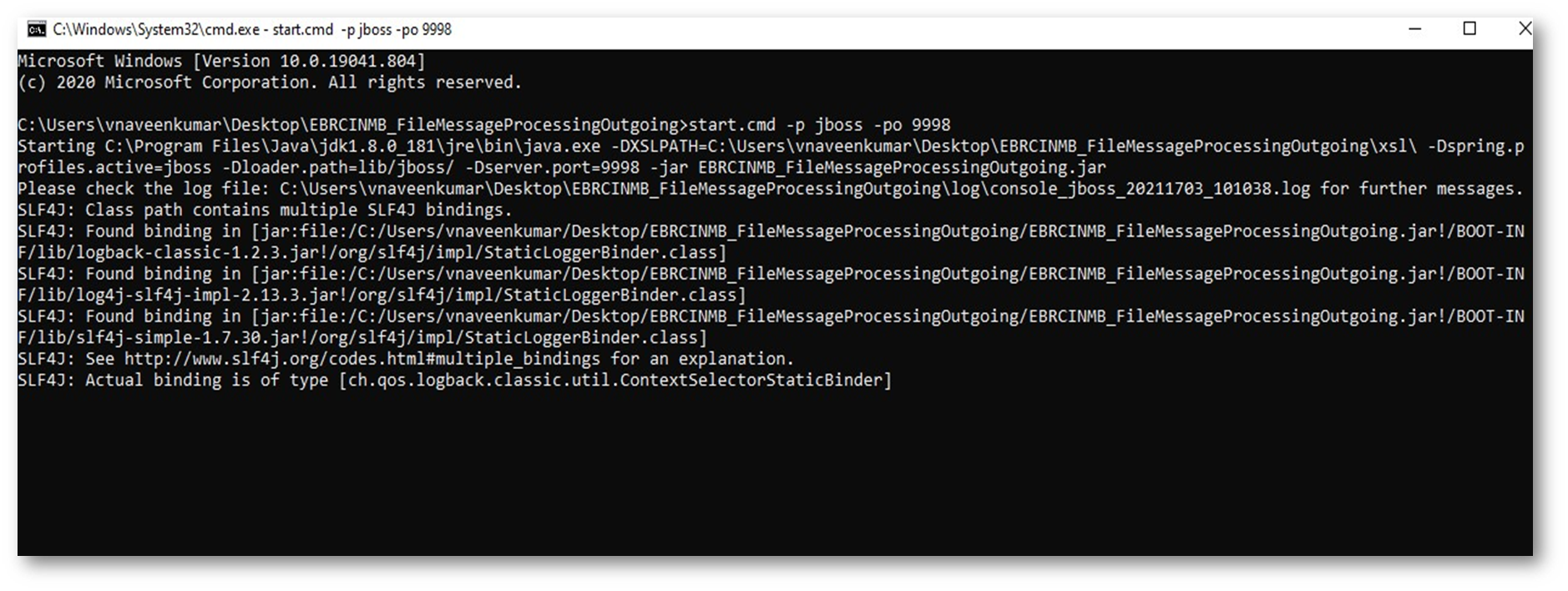

- The logs will be generated in the log folder for monitoring purpose. …\package\log\ console_[providername]_[datetime].txt
