Installing FCM GUI on Wildfly 26

This section details the steps to install the FCM GUI on Wildfly 26.1.X.Final.

Pre-requisites

Before installing the FCM GUI on Wildfly 26.1.X.Final,

• Download wildfly-26.1.X.Final.zip from Wildfly.
• Use the Jakarta EE 8 Full and Web Distribution version.
• Download FCM artifacts and fcm-wildfly-configuration-X.zip from Temenos Distribution.

The system requirements are as follows:

• Operating system must be Windows or Linux.
• Java 11 installed (as default java or JAVA_HOME environment variable set)
• FCM Database installed and running.

Installing FCM GUI

To install FCM GUI on Wildfly 26,

1. Unzip wildfly-26.1.X.Final.zip into a directory named wildfly-26.1.X.Final.
2. Unzip fcm-wildfly—configuration-xxxx.zip into a directory named fcm-wildfly- configuration-xxxx.
3. Copy or merge the contents of the fcm-wildfly—configuration-xxxx/wildfly sub directory into the wildfly-26.1.X.Final directory.

Configuring Wildfly 26

To configure Wildfly 26,

1. Edit the appropriate fcm-onsite-standalone-{dbname}.xml (replace {dbname} with the appropriate value) file in the wildfly-26.1.X.Final/standalone/configuration directory and update the following:
   • DB connection URL
   • User name
   • Credential reference or password
The credential-store is a tool in Wildfly that stores the password in an encrypted format. The default password (ABCdef01) stored in dbcredstore.cs file is given as model2.

...
<property name="com.temenos.fcm.datasource.url" value="${env.DB_CONNECTION_URL:jdbc:postgresql://localhost:5432/FCMDB}"/>
...
<datasource jta="true" jndi- name="java:/jdbc/com/temenos/fcm/datasourceUncommitted"...
...
<security>
<user-name>${env.DB_USERNAME:model2}</user-name>
<credential-reference store="dbcredstore" alias="model2"/>
</security>
...
<xa-datasource jndi-name="java:/jdbc/com/temenos/fcm/xa/datasource"...
...
<security>
<user-name>${env.DB_USERNAME:model2}</user-name>
<credential-reference store="dbcredstore" alias="model2"/>
</security>
...
<subsystem  xmlns="urn:wildfly:elytron:15.1"  ...>
...
<credential-stores>
<credential-store  name="dbcredstore"  relative-to="jboss.home.dir" location="credential/dbcredstore.cs">
<credential-reference clear-text="fcmpassword"/>
</credential-store>
</credential-stores>
</subsystem>

2. When the credential store is not used, update the PASSWORD using the below configuration.

   <security>
   <user-name>${env.DB_USERNAME:model2}</user-name>
   <password>${env.DB_PASSWORD}</password>
   </security>


   set environment variables `DB_CONNECTION_URL`,
   `DB_USERNAME` and `DB_PASSWORD` to the appropriate values.


3. Configure the memory allocation.
   • On Linux, add the below line at the end of the wildfly-26.1.X.Final/bin/standalone.conf file.

     JAVA_OPTS="$JAVA_OPTS -Xms1G -Xmx4G -XX:MetaspaceSize=1G
     -XX:MaxMetaspaceSize=2G"


   • On Windows, add the following line before :JAVA_OPTS_SET in the wildfly- 26.1.X.Final/bin/standalone.conf.bat file.

     set "JAVA_OPTS=%JAVA_OPTS% -Xms1G -Xmx4G -XX:MetaspaceSize=1G
     -XX:MaxMetaspaceSize=2G"


Deploying FCM GUI

To deploy the FCM GUI on Wildfly 26,

1. Stop WildFly.
2. Copy the financial-crime-mitigation-form-ear-X.ear file into the wildfly- 26.1.X.Final/standalone/deployments directory.
3. Start Wildfly with the below command.

   cd wildfly-26.1.X.Final/bin
   ./standalone.bat -c fcm-onsite-standalone-{dbname}.xml


4. Check whether the ear file is deployed successfully.

   WFLYSRV0010:  Deployed  "financial-crime-mitigation-form-ear-X.ear"  (runtime-name
   : "financial-crime-mitigation-form-ear-X.ear")


5. Ignore the warnings with the following codes.
   • WFLYTX0013
   • WFLYELY00023
   • WFLYELY01084
   • WFLYSRV0058
   • WFLYSRV0059
   • HHH90000014
   • HHH000409
   • HHH000398

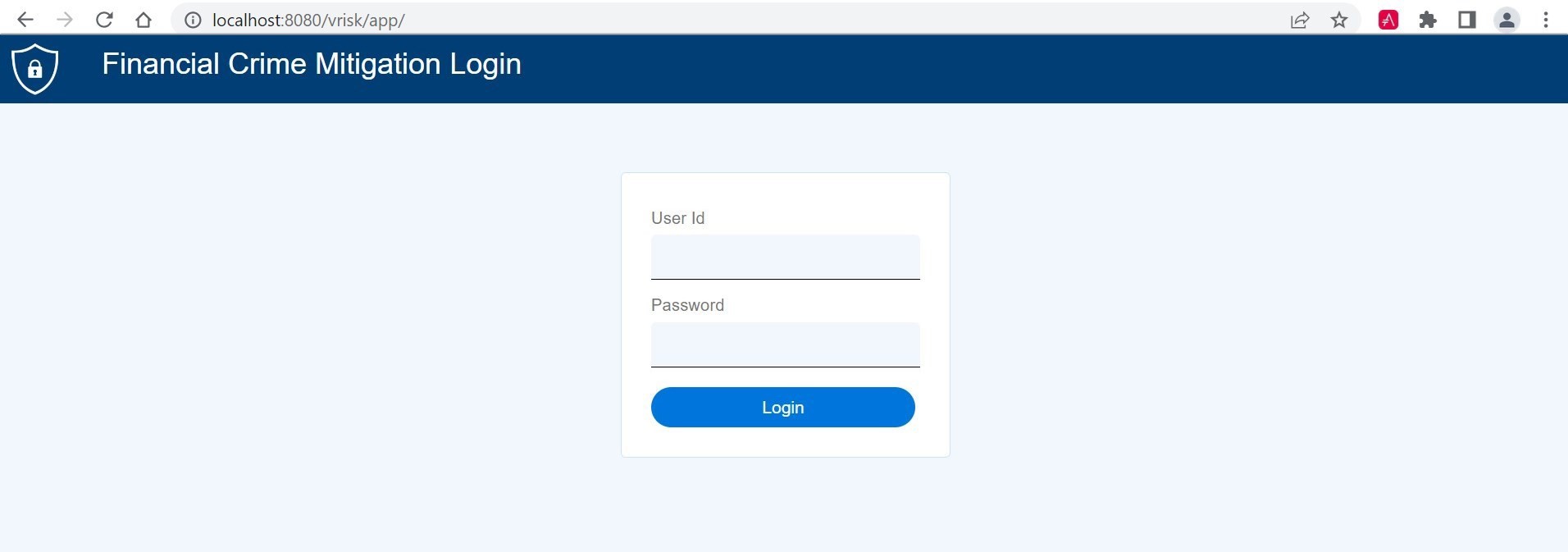

Accessing FCM GUI

To access the FCM GUI,

1. Open a browser and navigate to http://localhost:8080/vrisk.
2. Replace localhost with the appropriate hostname or IP address.
