Temenos Digital
R24 AMR | Min(s) read

Dropdown

This component is used as a dropdown to display the list of accounts and their balance amounts.

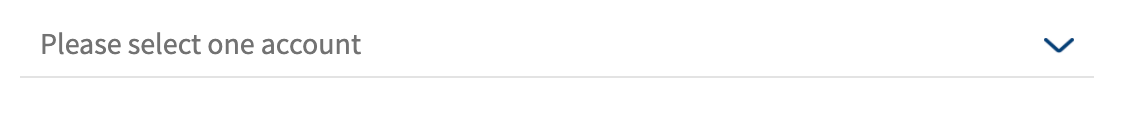

Dropdown closed

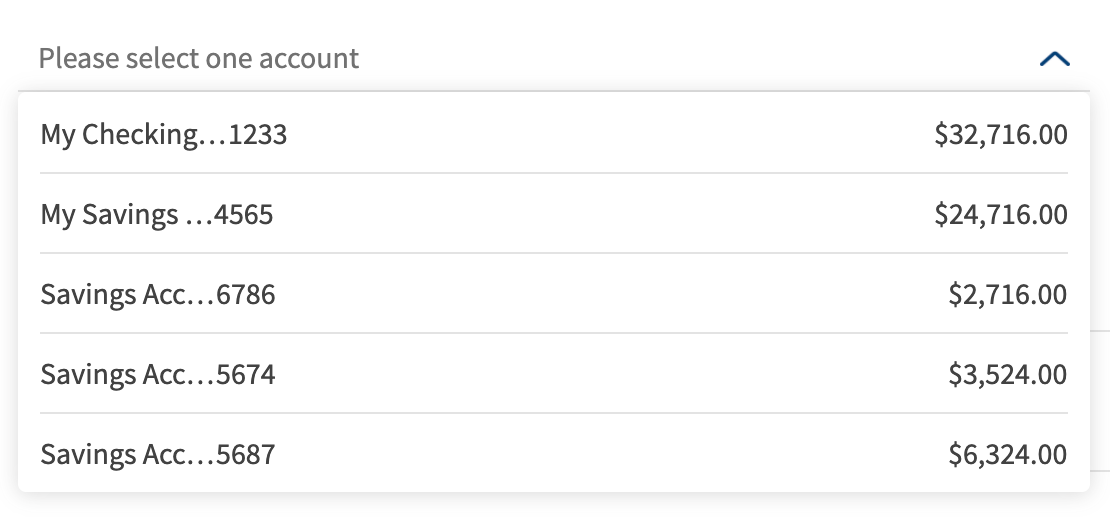

Dropdown open

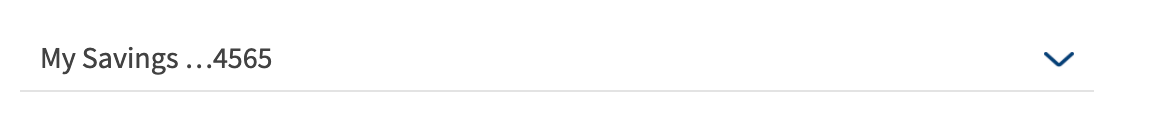

Account selected

  • It has the same view in all the breakpoints.
  • The account name text will be automatically cut and ellipsis (...) will appear after a set character limit. This is configurable via setOtherData API. The default limit is 11.
  • The default maximum number of rows that are visible are 5. This property is configurable via setOtherData API.

Usage

Here are the steps to set the component in Quantum Visualizer:

  1. Open the Temenos DigitalOrigination project in Quantum Visualizer.
  2. Drag and drop a Flex Container widget onto the required form.
  3. Select the Flex Container and set the following properties:
    • Clip bounds: "Off"
    • Height: "40 Dp"
  4. Assign higher z index to the flex so that the dropdown appears on top of the content in the form
  5. Insert the component in the Flex Container.

APIs

Callbacks
